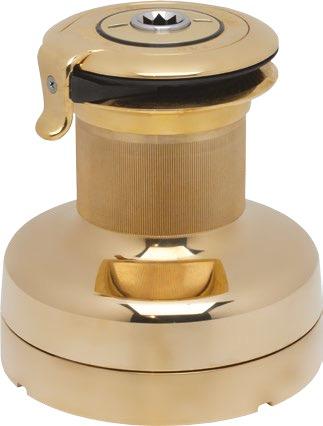

Specifications for Antal 52 2-Speed Self-Tailing Bronze Classic Winch
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Size | 52 |
| Style | Self-Tailing |
| Material | Bronze |
| Line recovery per rotation - 1st gear (mm) | 100 |
| Line recovery per rotation - 2nd gear (mm) | 30 |
| Base Ø (mm) | 204 |
| Drum Ø (mm) | 105 |
| Height (mm) | 217 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 3.3 |
| Gear ratio 2 (X : 1) | 11.1 |
| Power ratio 1 (X : 1) | 15.9 |
| Power ratio 2 (X : 1) | 52.8 |
| Weight (g) | 14300 |
Classic Series Winches
Quick and powerful operation is obtainable with the first reduced speed, then with increasing load, simply wind in the opposite direction the second gear and maximum power is automatically selected.
POLISHED BRONZE (BN): rather than plating the bronze with chrome, the polished bronze winches use the natural colour of the bronze material to a polished finish.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
Classic series winches (BNC) are supplied not only with a bronze drum, ST disks and ST arm, as the bronze series models (BN), but also with a bronze lower skirt, thus being completely bronze.
Specifications
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Size | 52 |
| Style | Self-Tailing |
| Material | Bronze |
| Line recovery per rotation - 1st gear (mm) | 100 |
| Line recovery per rotation - 2nd gear (mm) | 30 |
| Base Ø (mm) | 204 |
| Drum Ø (mm) | 105 |
| Height (mm) | 217 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 3.3 |
| Gear ratio 2 (X : 1) | 11.1 |
| Power ratio 1 (X : 1) | 15.9 |
| Power ratio 2 (X : 1) | 52.8 |
| Weight (g) | 14300 |
