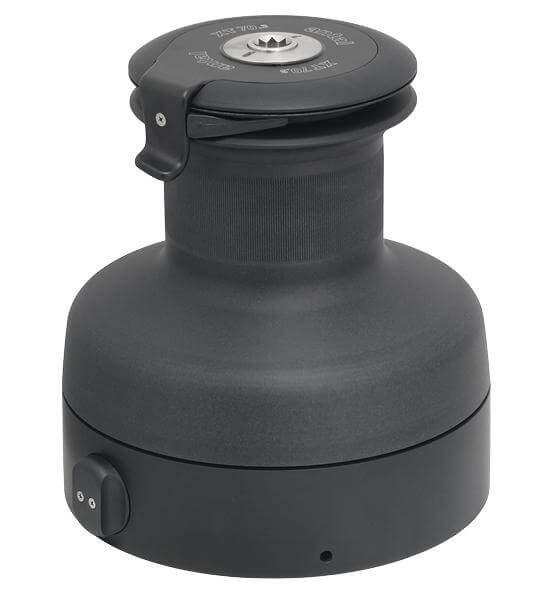

Three Reduced Speed Winch
The push-button on the base starts the first gear (the fastest); second and third gear are automatically selected simply by reversing the rotation of the handle.
HARD BLACK ALUMINIUM (AL): the aluminium drum is hard black anodized and teflon coated, scratch-proof and very hard-wearing, with a differentiated grip (aluminium drums only): minimum friction on the lower part where loads are higher and maximum at the top where loads are minimal: the result is an even grip along the entire drum.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
Specifications
Recommended line - Max Ø (mm) | 18 |
Recommended line - Min Ø (mm) | 10 |
Size | 70 |
Style | Self-Tailing |
Material | Aluminium |
Line recovery per rotation - 1st gear (mm) | 151 |
Line recovery per rotation - 2nd gear (mm) | 59 |
Line recovery per rotation - 3rd gear (mm) | 23 |
Base Ø (mm) | 290 |
Drum Ø (mm) | 144 |
Height (mm) | 312 |
Gears (Manual) | 3-Speed |
Warranty (yrs) | 3 |
Gear ratio 1 (X : 1) | 3.1 |
Gear ratio 2 (X : 1) | 7.8 |
Gear ratio 3 (X : 1) | 20.1 |
Power ratio 1 (X : 1) | 10.7 |
Power ratio 2 (X : 1) | 27.1 |
Power ratio 3 (X : 1) | 69.8 |
Weight (g) | 22800 |
