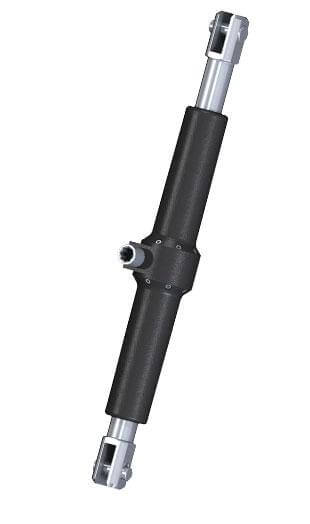

Specifications for Bamar BTM handle stay adjuster ø12
| Size | 12 |
| Wire Ø (mm) | 12 |
| Pin Ø (mm) | 19 |
| Stroke (mm) | 300 |
| SWL (kg) | 7000 |
| NBL (kg) | 14000 |
| A (mm) | 89 |
| B Max (mm) | 950 |
| B Min (mm) | 650 |
| C (mm) | 35 |
| D (mm) | 20 |
| Rod dash size | -22 |
| Weight (g) | 7500 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
BTM winch handle stay tensioners are available in several sizes. They are made for either 1x19 wire stays from Ø 8 to 22 mm or rod equivalent. The mechanism can be operated by means of a standard winch handle thanks to an octagonal clutch.
BTM stay tensioners body is manufactured in black HARDCOTE anodized aluminum; whereas studs and forks are made in s.s.. Double extension studs allow for a longer stroke compared to comparable products. Furthermore, we may supply a range of quick release pins for either inner forestay tensioners or standing rigging that need to be "running" with a simple operation.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size | 12 |
| Wire Ø (mm) | 12 |
| Pin Ø (mm) | 19 |
| Stroke (mm) | 300 |
| SWL (kg) | 7000 |
| NBL (kg) | 14000 |
| A (mm) | 89 |
| B Max (mm) | 950 |
| B Min (mm) | 650 |
| C (mm) | 35 |
| D (mm) | 20 |
| Rod dash size | -22 |
| Weight (g) | 7500 |
