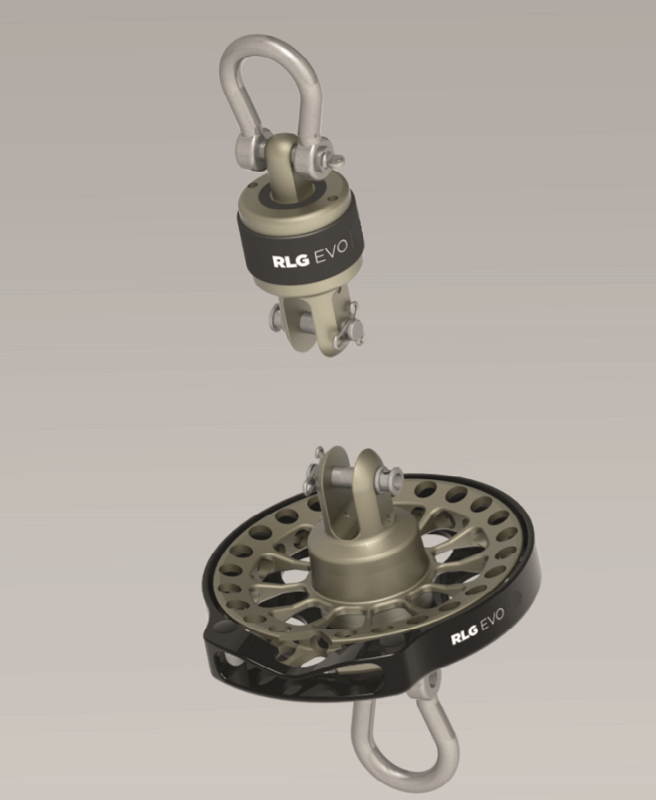

Specifications for Bamar RLG EVO 8 furler set - bottom-up, drum & swivel
| Recommended line - Max Ø (mm) | 8 |
| Jaw pin Ø (mm) | 8 |
| Jaw width (mm) | 13 |
| Drum Ø (mm) | 110 |
| SWL (kg) | 2000 |
| A (mm) | 8 |
| B (mm) | 13 |
| C (mm) | 78 |
| D (mm) | 45 |
| E (mm) | 110 |
| F (mm) | 91 |
| Weight (g) | 810 |
Bamar’s RLG EVO range of continuous line furlers are characterised by the quality of their engineering and bearing systems. The drums have a lightweight, compact design with a quick release pin system for fast removal of the stay from the drum. The same drum can be used to fly bottom-up code zeros and top-down asymmetric sails, with the use of an independent tack swivel. The swivels are made out of ergal aluminium alloy and 17-4PH stainless steel, thereby guaranteeing high strength, hardness and corrosion resistance. The swivels are designed with quick release pins for fast removal of the stay from the swivel. The Bamar RLG EVO furler set includes: drum, swivel and HR Shackles.
Specifications
| Recommended line - Max Ø (mm) | 8 |
| Jaw pin Ø (mm) | 8 |
| Jaw width (mm) | 13 |
| Drum Ø (mm) | 110 |
| SWL (kg) | 2000 |
| A (mm) | 8 |
| B (mm) | 13 |
| C (mm) | 78 |
| D (mm) | 45 |
| E (mm) | 110 |
| F (mm) | 91 |
| Weight (g) | 810 |
