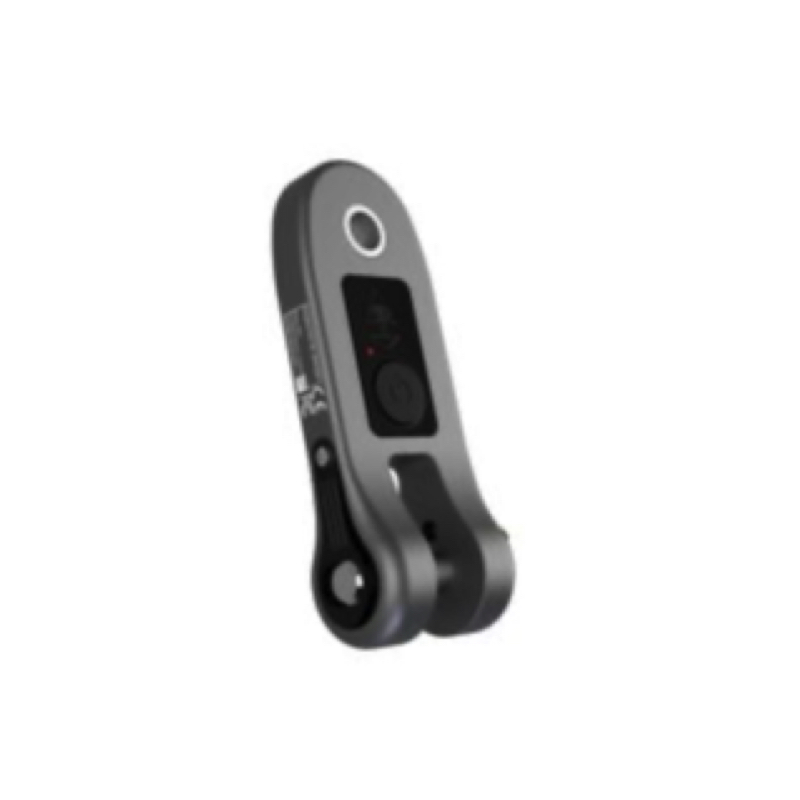

Cyclops Marine smarttoggle 7t (14mm) – Wireless Load Sensor

The Cyclops Marine smarttoggle 7t (14mm) is a high-precision wireless load sensor, designed to improve furling consistency and sail handling by providing real-time luff tension monitoring. Maintaining consistent luff tension is the key to achieving a smooth, repeatable furl for Code Zeros and asymmetric spinnakers, reducing the risk of uneven wraps and improving both sail performance and longevity. Engineered from high-strength aluminium, the smarttoggle 7t is one of the lightest, strongest, and most compact load sensors available, delivering ±1% accuracy with minimal impact on rigging weight.

Key Features & Benefits

✅ Consistent Luff Tension for Perfect Furling – Achieve a repeatable, smooth furl every time by precisely controlling luff tension, preventing uneven wraps and making sail handling easier and more reliable.

✅ Lightweight & Durable Construction – Made from Al6082-T6 aluminium, combining exceptional strength and minimal weight to maintain rig efficiency.

✅ Wireless Load Monitoring – Accurately measures loads with ±1% accuracy of the Maximum Working Load (MWL), helping sailors fine-tune tension for optimal performance.

✅ Intuitive Installation – Installs inline between the flying sail furler and sail cable, featuring a pin lock mechanism for a secure and straightforward setup.

✅ Seamless Connectivity – Connects via Bluetooth to the Cyclops Marine app for real-time load tracking, or integrates with onboard electronics via the Cyclops Marine Gateway for advanced monitoring and data logging.

✅ Extended Battery Life – Operates for up to 2,000 hours in standard mode and 8,000 hours in extended use mode, with a 2-year battery life in powered-off mode, ensuring long-term reliability.

✅ Wireless Charging – Charges effortlessly using a Cyclops wireless charging pad, with LED indicators for charge status updates.

✅ Marine-Grade Durability – Built with an IP68-rated waterproof housing, providing superior protection against harsh marine conditions.

Furler Compatibility & Sizing

• Pin Diameter: 14mm
• Furler Jaw Requirement: Must be greater than 25mm
• The smarttoggle 7t (14mm) is compatible with a variety of furlers. If you are unsure whether this size is suitable for your furler, contact us for compatibility guidance.

Technical Specifications

• Maximum Working Load (MWL): 7 tonnes
• Pin Diameter: 14mm
• Furler Jaw Clearance: >25mm
• Dimensions: 160 x 55 x 50 mm
• Weight: 530g
• Accuracy: ±1% of MWL (-10°C to +40°C)
• Battery: Lithium Polymer (0.925Wh)
• IP Rating: IP68

How the smarttoggle 7t (14mm) Improves Your Sailing

The smarttoggle 7t (14mm) is a must-have upgrade for sailors looking to enhance furling system performance and reliability, making it ideal for:

✔ Flying sail furlers – Ensures consistent, reliable furls for Code Zeros and asymmetric spinnakers.

✔ Code sails & staysails – Provides real-time load data to optimise rigging loads and sail handling.

✔ Performance cruising & racing yachts – Enables precise, repeatable tension settings for peak performance and efficiency.

Safety & Reliability

• Overload Protection: Do not exceed 150% of MWL, as this may cause permanent sensor damage and require recalibration.
• Calibration: After extended use under load, allow 1-2 minutes for the sensor to return to zero when unloaded.

Perfect Furls, Every Time – Optimise Your Sail Handling with smarttoggle

The Cyclops Marine smarttoggle 7t (14mm) removes the guesswork from furling by providing instant, wireless load monitoring, ensuring your Code Zero or asymmetric spinnaker furls perfectly every time. By allowing you to set and repeat the ideal luff tension, it enhances safety, improves sail handling, and protects your rigging.

Upgrade your furling system today and experience the benefits of real-time load intelligence. For compatibility inquiries, contact us to find the right fit for your furler.
