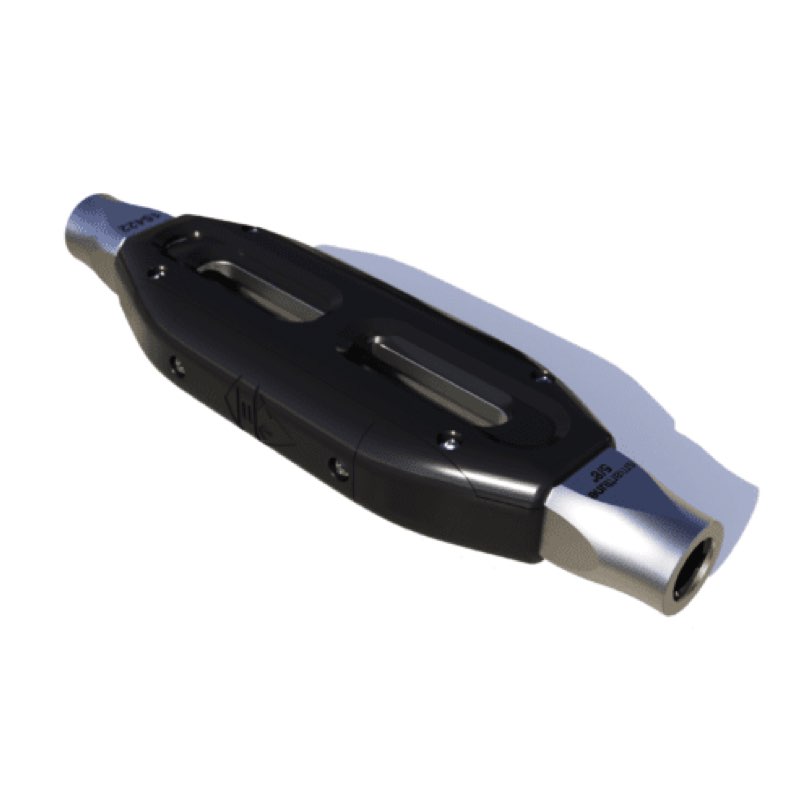

Cyclops Marine smarttune² 5/8" – Wireless Load Sensor
The Cyclops Marine smarttune² 5/8" is a high-precision wireless load sensor, designed to replace standard turnbuckles and deliver real-time rigging load data with ±1% accuracy. Optimised for performance keelboats, offshore racers, and high-performance cruising yachts, it allows sailors to fine-tune rigging tension for repeatable, optimised sail trim and enhanced efficiency. With seamless wireless integration, a rugged marine-grade design, and easy installation, the smarttune² 5/8" is an essential upgrade for sailors looking to maximise performance.
Key Features & Benefits
✅ Precision Load Monitoring – Measures loads with ±1% accuracy of the Maximum Working Load (MWL), ensuring highly accurate rigging adjustments.
✅ Effortless Installation – Replaces an existing turnbuckle with no complex modifications, making it quick and simple to retro-fit.
✅ Wireless Connectivity – Connects via Bluetooth to the Cyclops Marine app or integrates with onboard electronics through the Cyclops Marine Gateway, enabling live load monitoring and data logging.
✅ Extended Battery Life – Operates for up to 8,000 hours in extended use mode and 2 years in powered-off mode, ensuring reliability over long-term use.
✅ Wireless Charging – Charges via a Cyclops wireless charging pad, with LED indicators providing real-time charge status.
✅ Marine-Grade Durability – Built with an IP68-rated waterproof housing, ensuring resistance to the harshest marine conditions.
✅ Customisable Data Frequency – Factory-set at 1Hz, with the option for custom frequency settings.
Technical Specifications
- Calibrated Load: 5 tonnes
- Material: 316L stainless steel body, brass-threaded inserts
- Accuracy: ±1% of MWL between 0-40°C
- Battery Life: Up to 8,000 hours in extended use mode
- IP Rating: IP68
How the smarttune² 5/8" Fits into Your Sailing Setup
The smarttune² 5/8" is designed for mid-to-large performance yachts and offshore racers, making it ideal for:
✔ Shrouds and sidestays – Maintain precise, repeatable rig tension for performance gains.
✔ Backstays and forestays – Optimise mast bend and sail shape across various wind conditions.
✔ Race tuning – Track and refine settings for consistent high-speed sailing.
Safety and Reliability
- Overload Protection: Do not exceed 150% of the calibrated load, as this may cause permanent sensor damage requiring recalibration.
- Calibration: After extended use under load, allow 1-2 minutes for the sensor to return to zero when unloaded.
Enhance Your Sailing Performance with Real-Time Load Data
The Cyclops Marine smarttune² 5/8" revolutionises rig tuning with instant, wireless load intelligence, making it an essential tool for performance sailors. Whether fine-tuning rig settings for racing or ensuring safe rig tension, this precision-engineered sensor delivers the data needed to sail faster and smarter.
Upgrade your rigging today and take control with real-time load intelligence.
Spezifikationen
| Gesamtbreite (mm) | 65 |
| Gesamthöhe (mm) | 31 |
| Thread size | 5/8" |
| Gesamtlänge (mm) | 200 |
| Material | Nitronic 60 |
| SWL (kg) | 4000 |
| NBL (kg) | 9600 |
| Garantie (Jahren) | 2 |
| Wasserdichtigkeit | IP67 |
| Batterie Lebensdauer | 5 Montate |
| Batterietyp | 2x AAA |
| Gewicht (g) | 620 |
