Specifications for Lewmar 40 2-Speed Plain-Top Alloy Black EVOⓇ Sport Winch
| Empfohlener max. Leinendurchmesser (mm) | 12 |
| Empfohlener min. Leinendurchmesser (mm) | 8 |
| Größe | 40 |
| Style | Plain-Top |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 264 |
| Line recovery per rotation - 2nd gear (mm) | 86 |
| Basis Ø (mm) | 148 |
| Trommel Ø (mm) | 74 |
| Höhe (mm) | 159.5 |
| Leinen Einlaufhöhe (mm) | 79 |
| Gänge (manuell) | 2-Speed |
| SWL (kg) | 975 |
| Garantie (Jahren) | 7 |
| B (mm) | 148 |
| D (mm) | 74 |
| H (mm) | 159.5 |
| L (mm) | 79 |
| Getriebuntersetzung 1. Gang (X : 1) | 1.9 |
| Getriebuntersetzung 2. Gang (X : 1) | 5,8 |
| Kraftuntersetzung 1. Gang (X : 1) | 13,2 |
| Kraftuntersetzung 2. Gang (X : 1) | 40.2 |
| Gewicht (g) | 5500 |
|
Lewmar - How to Service an EVO Winch
A step-by-stepy guide to serviving the EVO winch by Lewmar
|
|
|
Manual-Winch Part Manual - Volume 10.pdf
Manual - Volume 10
|
|
|
|
Manual-Winch Service Manual B2304 iss6-2.pdf
B2304 - Issue 6
|
|
|
|
DRILLING_TEMPLATES copy-2.pdf
Drilling Templates for EVO and Ocean Winches 14ST-65ST
|

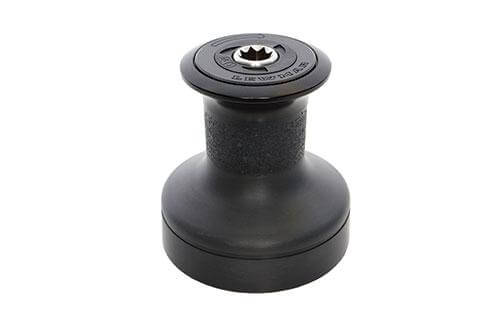

Lewmar's Plain-Top EVO® Sport Alloy Black Winch
The EVO® Sport complements the EVO® Winch Range. Best suited for sport boats requiring constant trimming, and where weight consideration is a premium. The EVO® Sport is also suitable as a mast mounted winch.
Features
Architecture based on self tailing EVO® Winch
Easy Servicing– no tools required. Simply unscrew the top cap with your fingers to remove the drum and provide access to the gear train
Plain-Top to Self-Tailing - Size 30 and 40 can be converted into an EVO® Self tailing winch retrospectively
Manual to Electric - Size 40 can be converted to electric
Choice of finishes: Black alloy or Chrome bronze
Available in size 6 to size 40
Spezifikationen
| Empfohlener max. Leinendurchmesser (mm) | 12 |
| Empfohlener min. Leinendurchmesser (mm) | 8 |
| Größe | 40 |
| Style | Plain-Top |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 264 |
| Line recovery per rotation - 2nd gear (mm) | 86 |
| Basis Ø (mm) | 148 |
| Trommel Ø (mm) | 74 |
| Höhe (mm) | 159.5 |
| Leinen Einlaufhöhe (mm) | 79 |
| Gänge (manuell) | 2-Speed |
| SWL (kg) | 975 |
| Garantie (Jahren) | 7 |
| B (mm) | 148 |
| D (mm) | 74 |
| H (mm) | 159.5 |
| L (mm) | 79 |
| Getriebuntersetzung 1. Gang (X : 1) | 1.9 |
| Getriebuntersetzung 2. Gang (X : 1) | 5,8 |
| Kraftuntersetzung 1. Gang (X : 1) | 13,2 |
| Kraftuntersetzung 2. Gang (X : 1) | 40.2 |
| Gewicht (g) | 5500 |
