Specifications for UBI Maior Halyard Block for 2:1 - SWL 2.0T
| Cordage recommandé – Ø Max (mm) | 12 |
| Matériau | Aluminum |
| Ø réas (mm) | 36 |
| Material Grade | 6082-T6 |
| Ø axe (mm) | 10 |
| Charge de travail (kg) | 2000 |
| Charge de rupture (kg) | 4000 |
| A (mm) | 20 |
| B (mm) | 37 |
| Poids (g) | 120 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

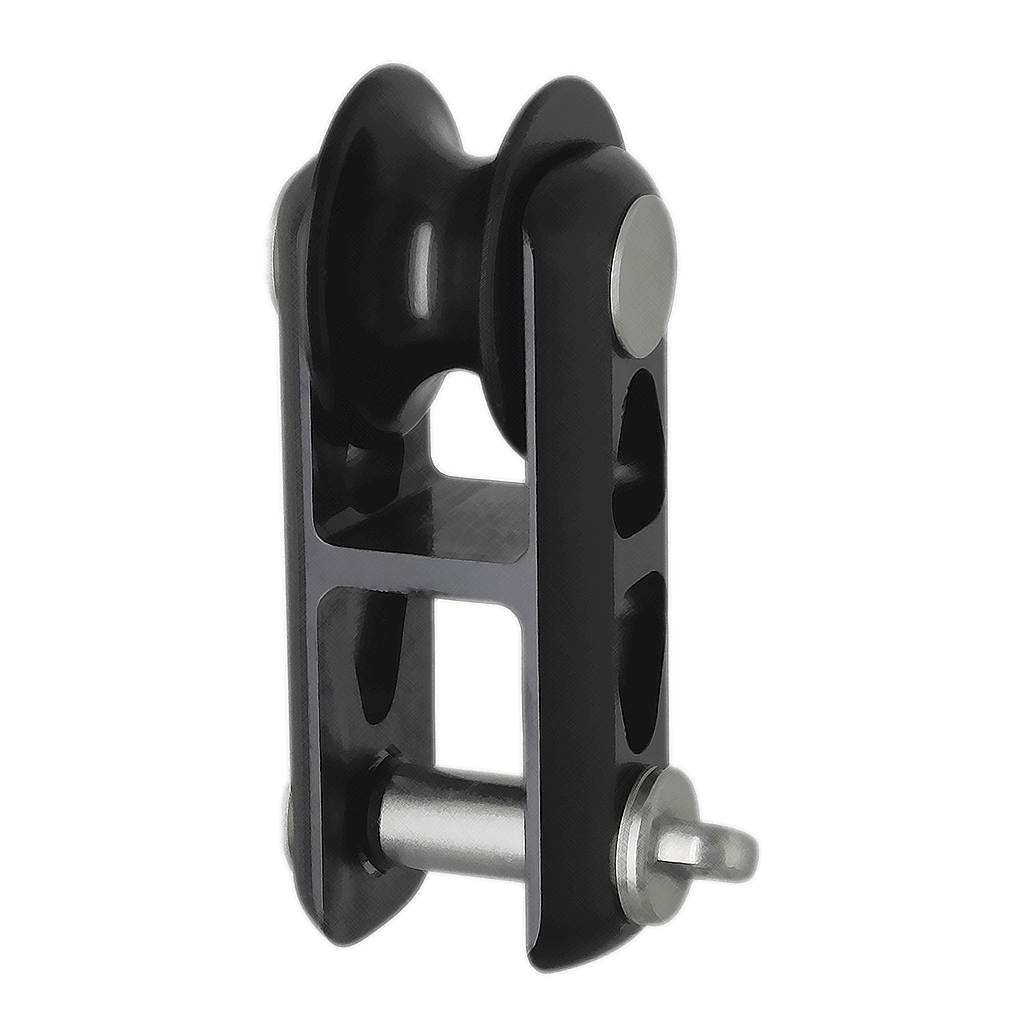

These Halyard blocks from Uni Maior act as a 2:1 purchase system on the halyard, halving the load of the hoist. The main body is built in aluminium (grade: 6082T6) with a stainless steel pin.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Cordage recommandé – Ø Max (mm) | 12 |
| Matériau | Aluminum |
| Ø réas (mm) | 36 |
| Material Grade | 6082-T6 |
| Ø axe (mm) | 10 |
| Charge de travail (kg) | 2000 |
| Charge de rupture (kg) | 4000 |
| A (mm) | 20 |
| B (mm) | 37 |
| Poids (g) | 120 |
