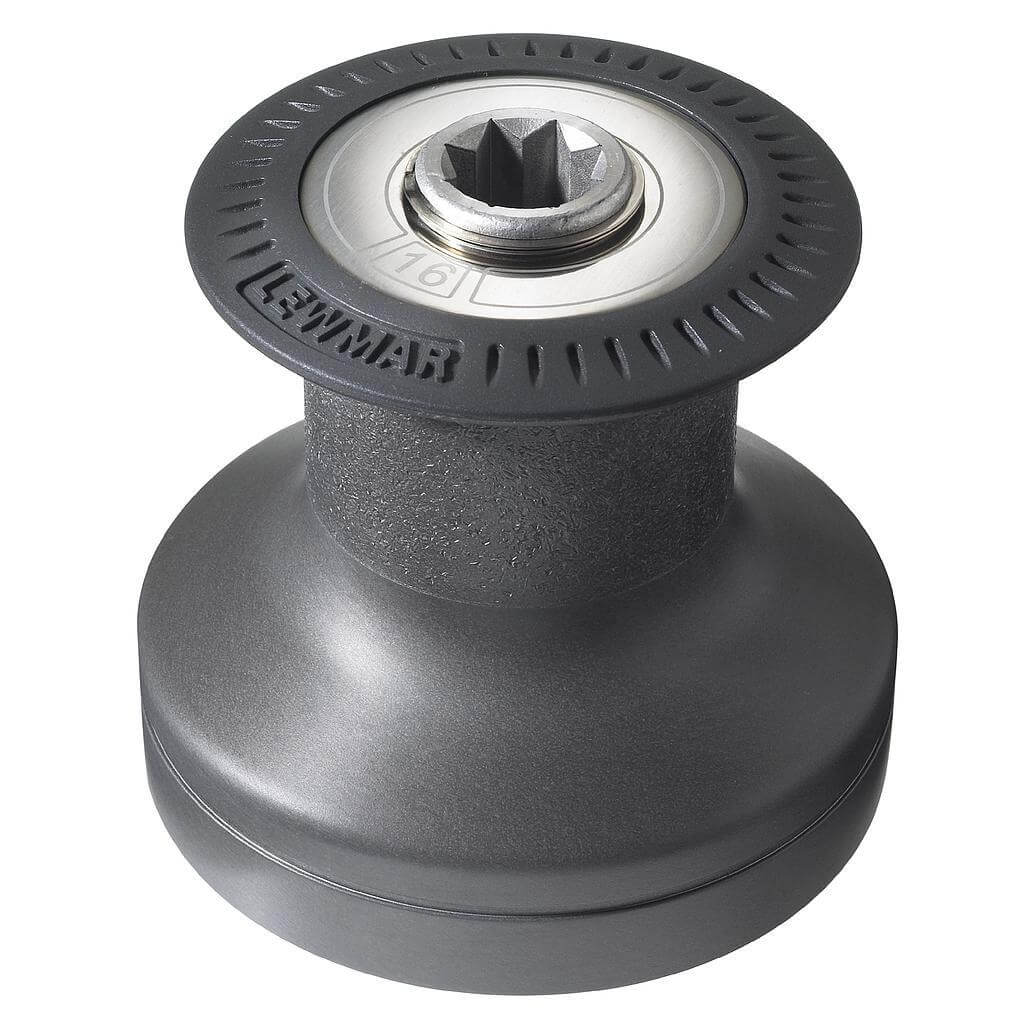

Specifications for Lewmar 16 2-Speed Plain-Top Alloy Black Ocean Winch
| Size | 16 |
| Style | Plain-Top |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 352 |
| Line recovery per rotation - 2nd gear (mm) | 176 |
| Base Ø (mm) | 120 |
| Drum Ø (mm) | 67 |
| Height (mm) | 112 |
| Line entry height (mm) | 55 |
| Gears (Manual) | 2-Speed |
| B (mm) | 120 |
| D (mm) | 67 |
| H (mm) | 112 |
| L (mm) | 55 |
| Gear ratio 1 (X : 1) | 1 |
| Gear ratio 2 (X : 1) | 2 |
| Power ratio 1 (X : 1) | 7.9 |
| Power ratio 2 (X : 1) | 16.1 |
| Weight (g) | 2100 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Lewmar's Plain-Top Standard Alloy Black Winch
Best suited for sport boats requiring constant trimming and where weight consideration is a premium. Also suitable as mast mounted winches.
Features
Architecture based on self tailing Winches
Easy Servicing– no tools required. Simply unscrew the top cap with your fingers to remove the drum and provide access to the gear train
Choice of finishes: Black alloy or Chrome bronze
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size | 16 |
| Style | Plain-Top |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 352 |
| Line recovery per rotation - 2nd gear (mm) | 176 |
| Base Ø (mm) | 120 |
| Drum Ø (mm) | 67 |
| Height (mm) | 112 |
| Line entry height (mm) | 55 |
| Gears (Manual) | 2-Speed |
| B (mm) | 120 |
| D (mm) | 67 |
| H (mm) | 112 |
| L (mm) | 55 |
| Gear ratio 1 (X : 1) | 1 |
| Gear ratio 2 (X : 1) | 2 |
| Power ratio 1 (X : 1) | 7.9 |
| Power ratio 2 (X : 1) | 16.1 |
| Weight (g) | 2100 |
