Specifications for Lewmar 16 2-Speed Plain-Top Chromed Bronze EVOⓇ Sport Winch
| Recommended line - Max Ø (mm) | 12 |
| Recommended line - Min Ø (mm) | 8 |
| Size | 16 |
| Style | Plain-Top |
| Material | Chromed Bronze |
| Line recovery per rotation - 1st gear (mm) | 352 |
| Line recovery per rotation - 2nd gear (mm) | 176 |
| Base Ø (mm) | 120 |
| Drum Ø (mm) | 67 |
| Height (mm) | 112 |
| Line entry height (mm) | 55 |
| Gears (Manual) | 2-Speed |
| SWL (kg) | 570 |
| Warranty (yrs) | 7 |
| B (mm) | 120 |
| D (mm) | 67 |
| H (mm) | 112 |
| L (mm) | 55 |
| Gear ratio 1 (X : 1) | 1 |
| Gear ratio 2 (X : 1) | 2 |
| Power ratio 1 (X : 1) | 7.9 |
| Power ratio 2 (X : 1) | 16.1 |
| Weight (g) | 3200 |
|
Lewmar - How to Service an EVO Winch
A step-by-stepy guide to serviving the EVO winch by Lewmar
|
|
|
Manual-Winch Part Manual - Volume 10.pdf
Manual - Volume 10
|
|
|
|
Manual-Winch Service Manual B2304 iss6-2.pdf
B2304 - Issue 6
|
|
|
|
DRILLING_TEMPLATES copy-2.pdf
Drilling Templates for EVO and Ocean Winches 14ST-65ST
|

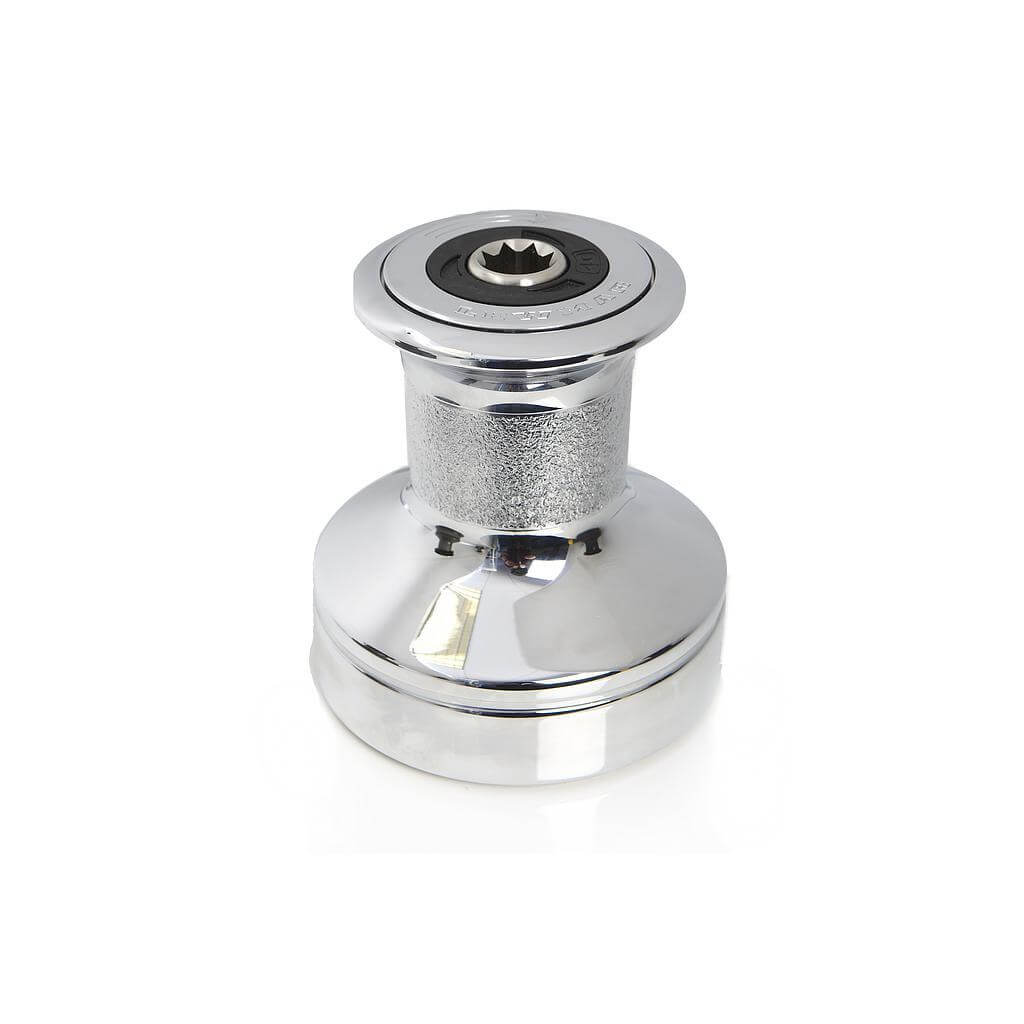

Lewmar's Plain-Top EVO® Sport Chromed Bronze Winch
The EVO® Sport complements the EVO® Winch Range. Best suited for sport boats requiring constant trimming, and where weight consideration is a premium. The EVO® Sport is also suitable as a mast mounted winch.
Features
Architecture based on self tailing EVO® Winch
Easy Servicing– no tools required. Simply unscrew the top cap with your fingers to remove the drum and provide access to the gear train
Plain-Top to Self-Tailing - Size 30 and 40 can be converted into an EVO® Self tailing winch retrospectively
Manual to Electric - Size 40 can be converted to electric
Choice of finishes: Black alloy or Chrome bronze
Available in size 6 to size 40
Specifications
| Recommended line - Max Ø (mm) | 12 |
| Recommended line - Min Ø (mm) | 8 |
| Size | 16 |
| Style | Plain-Top |
| Material | Chromed Bronze |
| Line recovery per rotation - 1st gear (mm) | 352 |
| Line recovery per rotation - 2nd gear (mm) | 176 |
| Base Ø (mm) | 120 |
| Drum Ø (mm) | 67 |
| Height (mm) | 112 |
| Line entry height (mm) | 55 |
| Gears (Manual) | 2-Speed |
| SWL (kg) | 570 |
| Warranty (yrs) | 7 |
| B (mm) | 120 |
| D (mm) | 67 |
| H (mm) | 112 |
| L (mm) | 55 |
| Gear ratio 1 (X : 1) | 1 |
| Gear ratio 2 (X : 1) | 2 |
| Power ratio 1 (X : 1) | 7.9 |
| Power ratio 2 (X : 1) | 16.1 |
| Weight (g) | 3200 |
