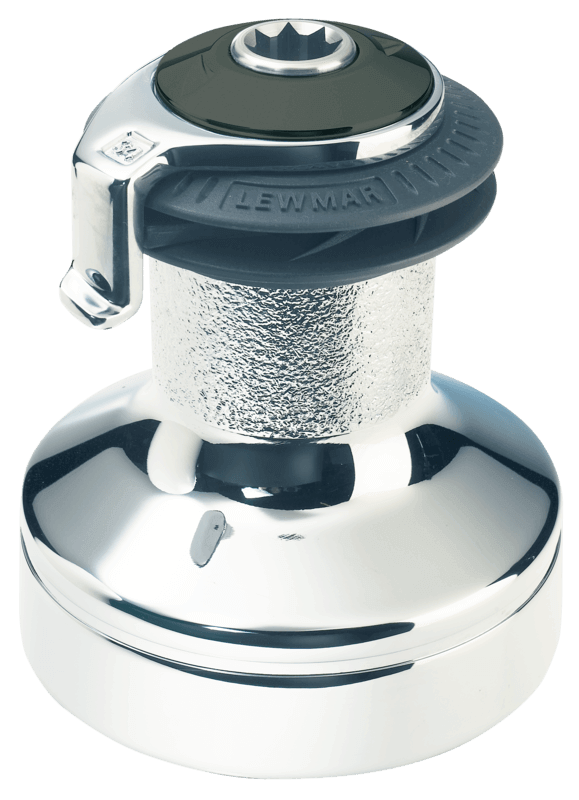

Lewmar's Self-Tailing Ocean Chromed Bronze Winch
Lewmar's Ocean winch range is the most popular winch ever made. Its styling still attracts boat builders looking for a classic look, or boat owners looking to upgrade or replace their existing winches.
Features
Easy Servicing - no tools required. Simply unscrew the top cap with your fingers to remove the drum and provide access to the gear train
Choice of two finishes - Ocean winches are available in grey alloy and chrome bronze for the cruising sailor
Manual to Electric - Conversion kits are available from size 40 and above
Available in Size 16 to Size 65
Solid construction respected by boat builders and sailors for generations
Specifications
Recommended line - Max Ø (mm) | 12 |
Recommended line - Min Ø (mm) | 8 |
Size | 30 |
Style | Self-Tailing |
Material | Chromed Bronze |
Line recovery per rotation - 1st gear (mm) | 252 |
Line recovery per rotation - 2nd gear (mm) | 120 |
Base Ø (mm) | 138 |
Drum Ø (mm) | 74 |
Height (mm) | 160.5 |
Line entry height (mm) | 69 |
Gears (Manual) | 2-Speed |
SWL (kg) | 1510 |
Warranty (yrs) | 3 |
B (mm) | 138 |
D (mm) | 74 |
H (mm) | 160.5 |
L (mm) | 69 |
Gear ratio 1 (X : 1) | 2 |
Gear ratio 2 (X : 1) | 4.2 |
Power ratio 1 (X : 1) | 13.8 |
Power ratio 2 (X : 1) | 29.2 |
Weight (g) | 5600 |
