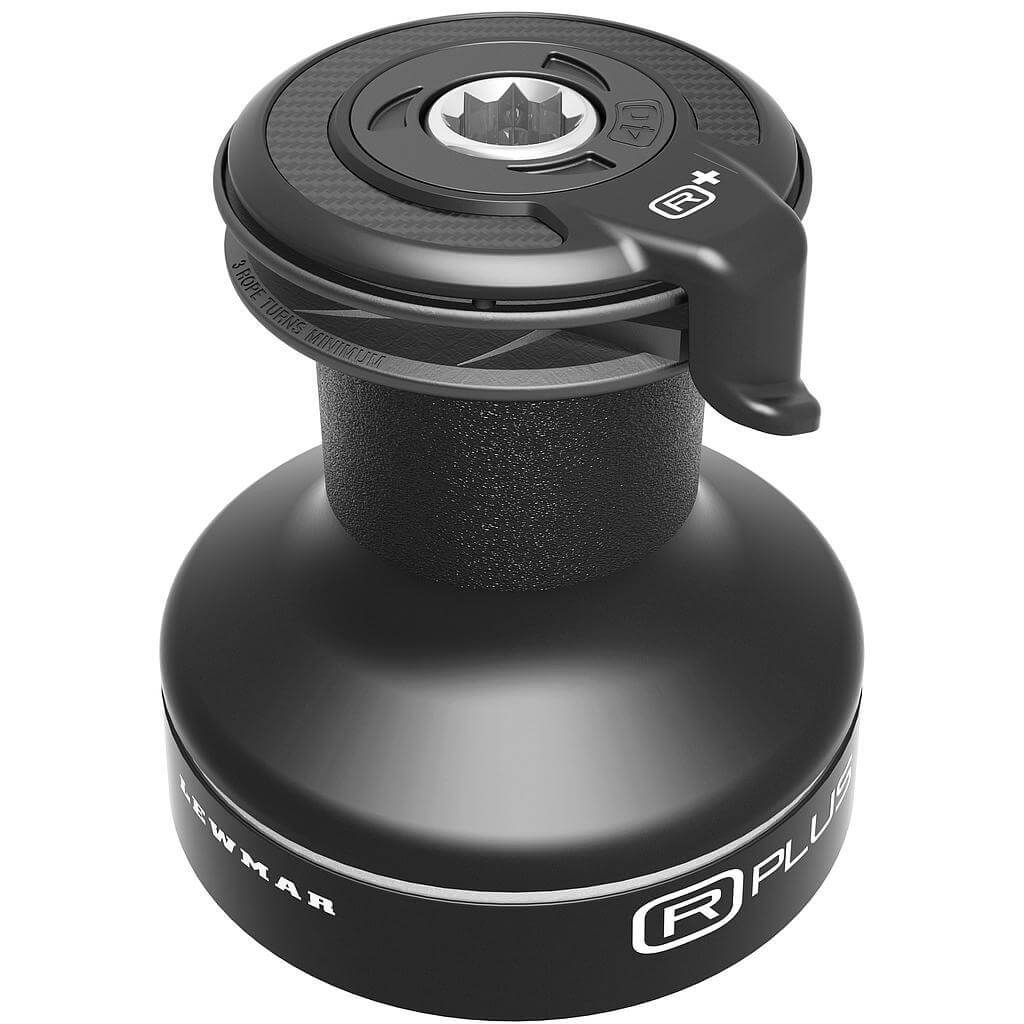

Lewmar's Self-Tailing EVO® Race+ Black Ionised Winch
Lewmar's EVO® Race+™ winches use a lightweight cast aluminium base stem and machined aluminium upper stem, together with other advanced material choices, to offer significant weight savings over standard EVO® winches.
Features
Lightweight centre stem
Lightened main spindle
Cast aluminium feeder arm
Composite bearing technology
"No tools" servicing
Carbon fibre inlay
Silver trim stripe
White pad-printed decals
Black anodised drum
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
Recommended line - Max Ø (mm) | 12 |
Recommended line - Min Ø (mm) | 8 |
Size | 40 |
Style | Self-Tailing |
Material | Aluminium |
Line recovery per rotation - 1st gear (mm) | 262 |
Line recovery per rotation - 2nd gear (mm) | 86 |
Base Ø (mm) | 148 |
Drum Ø (mm) | 74 |
Height (mm) | 158.5 |
Line entry height (mm) | 79 |
Gears (Manual) | 2-Speed |
Warranty (yrs) | 7 |
B (mm) | 148 |
D (mm) | 74 |
H (mm) | 158.5 |
L (mm) | 79 |
Gear ratio 1 (X : 1) | 1.9 |
Gear ratio 2 (X : 1) | 5.8 |
Power ratio 1 (X : 1) | 13.2 |
Power ratio 2 (X : 1) | 40.2 |
Weight (g) | 3600 |
