Specifications for Lewmar 40 2-Speed Self-Tailing Chromed Bronze Ocean Winch
| Recommended line - Max Ø (mm) | 12 |
| Recommended line - Min Ø (mm) | 8 |
| Size | 40 |
| Style | Self-Tailing |
| Material | Chromed Bronze |
| Line recovery per rotation - 1st gear (mm) | 286 |
| Line recovery per rotation - 2nd gear (mm) | 94 |
| Base Ø (mm) | 148 |
| Drum Ø (mm) | 74 |
| Height (mm) | 173 |
| Line entry height (mm) | 79 |
| Gears (Manual) | 2-Speed |
| SWL (kg) | 1753 |
| Warranty (yrs) | 3 |
| B (mm) | 148 |
| D (mm) | 74 |
| H (mm) | 173 |
| L (mm) | 79 |
| Gear ratio 1 (X : 1) | 1.9 |
| Gear ratio 2 (X : 1) | 5.8 |
| Power ratio 1 (X : 1) | 13.2 |
| Power ratio 2 (X : 1) | 40.2 |
| Weight (g) | 6500 |
|
Lewmar - How to Service an Ocean Winch
A step-by-stepy guide to serviving the Ocean winch by Lewmar
|
|
|
Manual-Winch Part Manual - Volume 10.pdf
Manual - Volume 10
|
|
|
|
Manual-Winch Service Manual B2304 iss6-2.pdf
B2304 - Issue 6
|
|
|
|
DRILLING_TEMPLATES copy-2.pdf
Drilling Templates for EVO and Ocean Winches 14ST-65ST
|

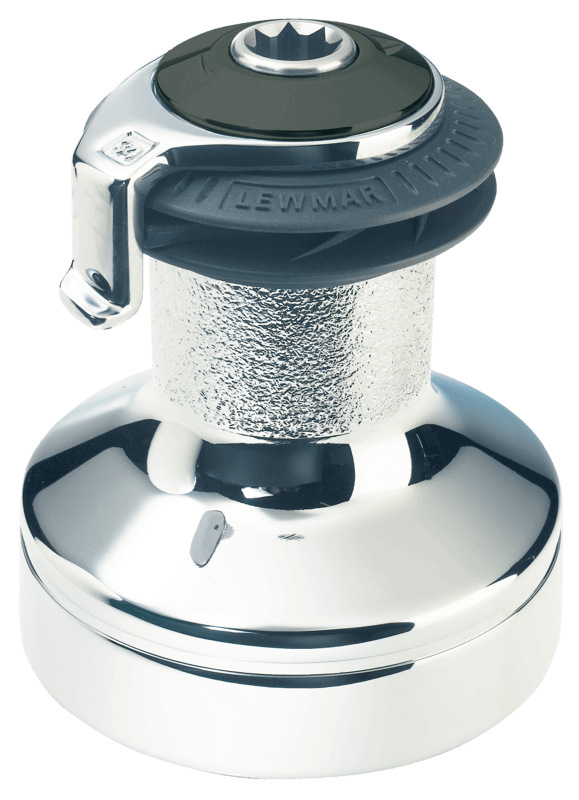

Lewmar's Self-Tailing Ocean Chromed Bronze Winch
Lewmar's Ocean winch range is the most popular winch ever made. Its styling still attracts boat builders looking for a classic look, or boat owners looking to upgrade or replace their existing winches.
Features
Easy Servicing - no tools required. Simply unscrew the top cap with your fingers to remove the drum and provide access to the gear train
Choice of two finishes - Ocean winches are available in grey alloy and chrome bronze for the cruising sailor
Manual to Electric - Conversion kits are available from size 40 and above
Available in Size 16 to Size 65
Solid construction respected by boat builders and sailors for generations
Specifications
| Recommended line - Max Ø (mm) | 12 |
| Recommended line - Min Ø (mm) | 8 |
| Size | 40 |
| Style | Self-Tailing |
| Material | Chromed Bronze |
| Line recovery per rotation - 1st gear (mm) | 286 |
| Line recovery per rotation - 2nd gear (mm) | 94 |
| Base Ø (mm) | 148 |
| Drum Ø (mm) | 74 |
| Height (mm) | 173 |
| Line entry height (mm) | 79 |
| Gears (Manual) | 2-Speed |
| SWL (kg) | 1753 |
| Warranty (yrs) | 3 |
| B (mm) | 148 |
| D (mm) | 74 |
| H (mm) | 173 |
| L (mm) | 79 |
| Gear ratio 1 (X : 1) | 1.9 |
| Gear ratio 2 (X : 1) | 5.8 |
| Power ratio 1 (X : 1) | 13.2 |
| Power ratio 2 (X : 1) | 40.2 |
| Weight (g) | 6500 |
