Specifications for Lewmar 45 2-Speed Self-Tailing Alloy Grey EVOⓇ Winch
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Size | 45 |
| Style | Self-Tailing |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 233 |
| Line recovery per rotation - 2nd gear (mm) | 73 |
| Base Ø (mm) | 168 |
| Drum Ø (mm) | 87 |
| Height (mm) | 177.7 |
| Line entry height (mm) | 84 |
| Gears (Manual) | 2-Speed |
| SWL (kg) | 1200 |
| Warranty (yrs) | 7 |
| B (mm) | 168 |
| D (mm) | 87 |
| H (mm) | 177.7 |
| L (mm) | 84 |
| Gear ratio 1 (X : 1) | 2.4 |
| Gear ratio 2 (X : 1) | 7.6 |
| Power ratio 1 (X : 1) | 13.9 |
| Power ratio 2 (X : 1) | 44.8 |
| Weight (g) | 7100 |
|
Lewmar - How to Service an EVO Winch
A step-by-stepy guide to serviving the EVO winch by Lewmar
|
|
|
|
Lewmar Evo Winch
Overview of the EVO winch from Lewmar
|
|
|
30-50 EVO EXPLODE.pdf
Exploded Technical Drawing
|
|
|
|
DRILLING_TEMPLATES copy-2.pdf
Drilling Templates for EVO and Ocean Winches 14ST-65ST
|
|
|
|
Lewmar_EVO_B13124_Iss_2-3.pdf
|
|
|
|
Evo winch service-B2304iss9_2-2.pdf
|

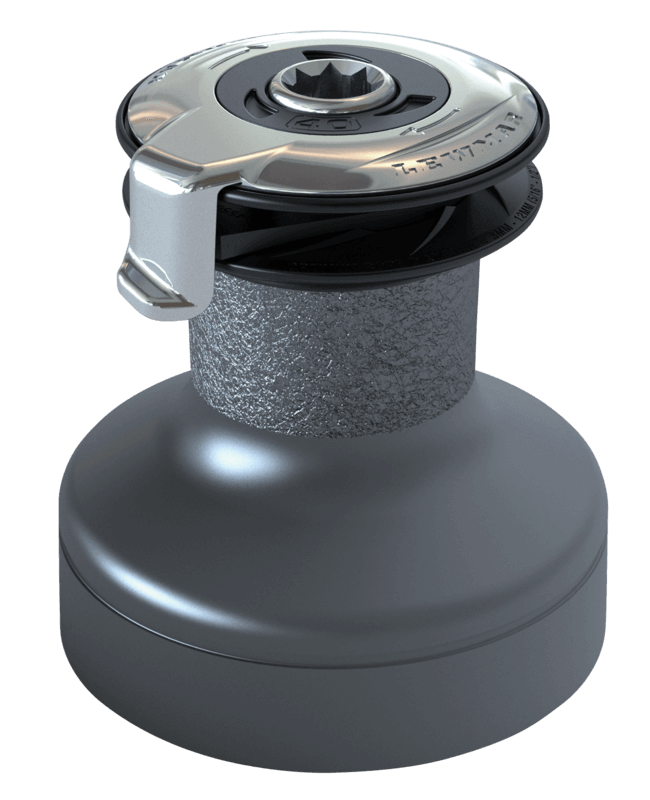

Lewmar's Self-Tailing EVO® Alloy Grey Winch
An evolution of the renowned Lewmar Ocean winch, the EVO® Self-Tailing Winch draws on a wealth of design and manufacturing experience to produce a state-of-the-art winch. With a wide choice of sizes and styles, there is a versatile EVO® for any style or application.
Features
Easy Servicing– no tools required. Simply unscrew the top cap with your fingers to remove the drum and provide access to the gear train
Choice of three finishes - EVO® winches are available in black or grey alloy and chrome bronze for the cruising sailor.
Available in Size 15 to Size 80
7-year warranty - Lewmar's confidence in the EVO rance is so high, they have given these winches the longest warrany period.
Specifications
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Size | 45 |
| Style | Self-Tailing |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 233 |
| Line recovery per rotation - 2nd gear (mm) | 73 |
| Base Ø (mm) | 168 |
| Drum Ø (mm) | 87 |
| Height (mm) | 177.7 |
| Line entry height (mm) | 84 |
| Gears (Manual) | 2-Speed |
| SWL (kg) | 1200 |
| Warranty (yrs) | 7 |
| B (mm) | 168 |
| D (mm) | 87 |
| H (mm) | 177.7 |
| L (mm) | 84 |
| Gear ratio 1 (X : 1) | 2.4 |
| Gear ratio 2 (X : 1) | 7.6 |
| Power ratio 1 (X : 1) | 13.9 |
| Power ratio 2 (X : 1) | 44.8 |
| Weight (g) | 7100 |
