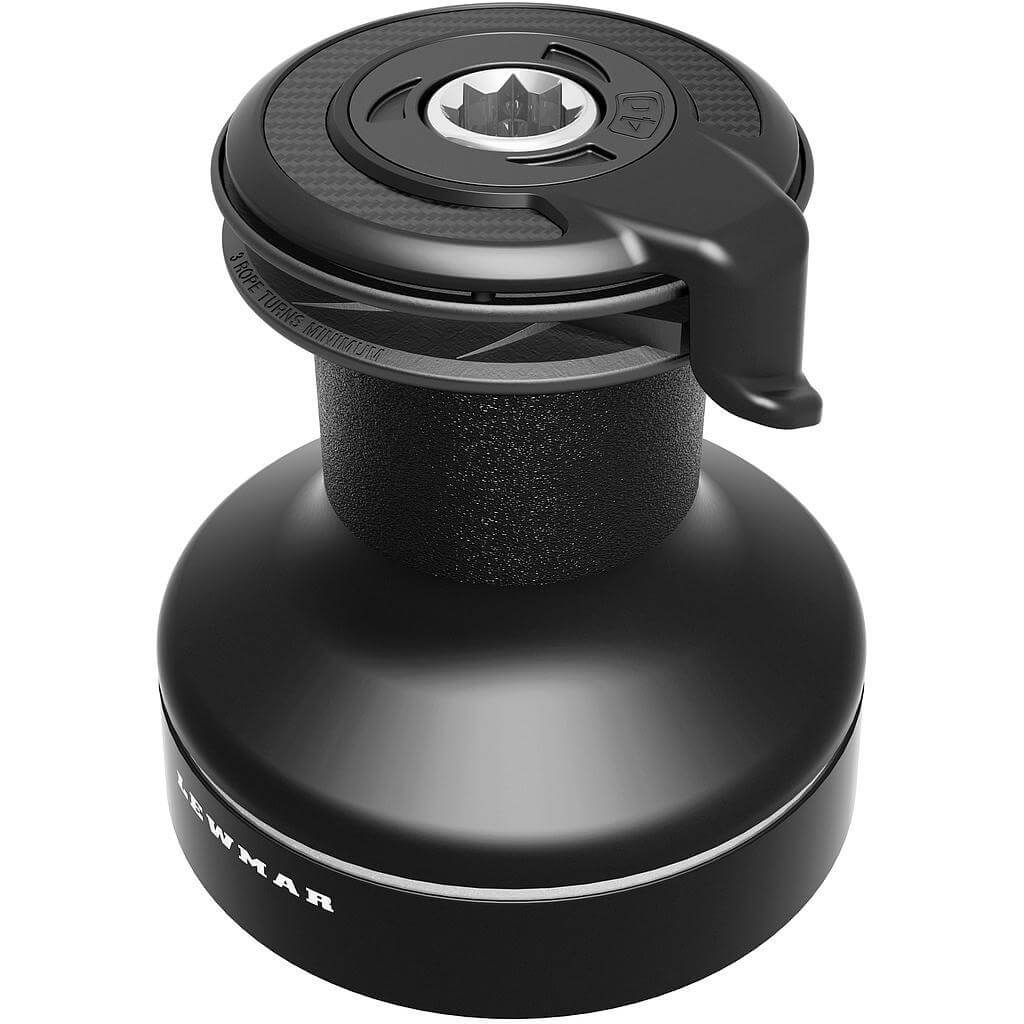

Lewmar's Self-Tailing EVO® Race Black Ionised Winch
The new EVO® Race winches combine EVO® architecture with all-new top components to offer a sleek, race look. Significant weight savings are made through the use of an aluminium drum.
Features
Easy Servicing– no tools required. Simply unscrew the top cap with your fingers to remove the drum and provide access to the gear train
Cast aluminium feeder arm
Black anodised drum
Carbon fibre top inlay feature
Silver trim band and white decals
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
Recommended line - Max Ø (mm) | 14 |
Recommended line - Min Ø (mm) | 8 |
Size | 45 |
Style | Self-Tailing |
Material | Aluminium |
Line recovery per rotation - 1st gear (mm) | 233 |
Line recovery per rotation - 2nd gear (mm) | 73 |
Base Ø (mm) | 168 |
Drum Ø (mm) | 87 |
Height (mm) | 177.7 |
Line entry height (mm) | 84 |
Gears (Manual) | 2-Speed |
Warranty (yrs) | 7 |
B (mm) | 168 |
D (mm) | 87 |
H (mm) | 177.7 |
L (mm) | 84 |
Gear ratio 1 (X : 1) | 2.4 |
Gear ratio 2 (X : 1) | 7.6 |
Power ratio 1 (X : 1) | 13.9 |
Power ratio 2 (X : 1) | 44.8 |
Weight (g) | 7100 |
