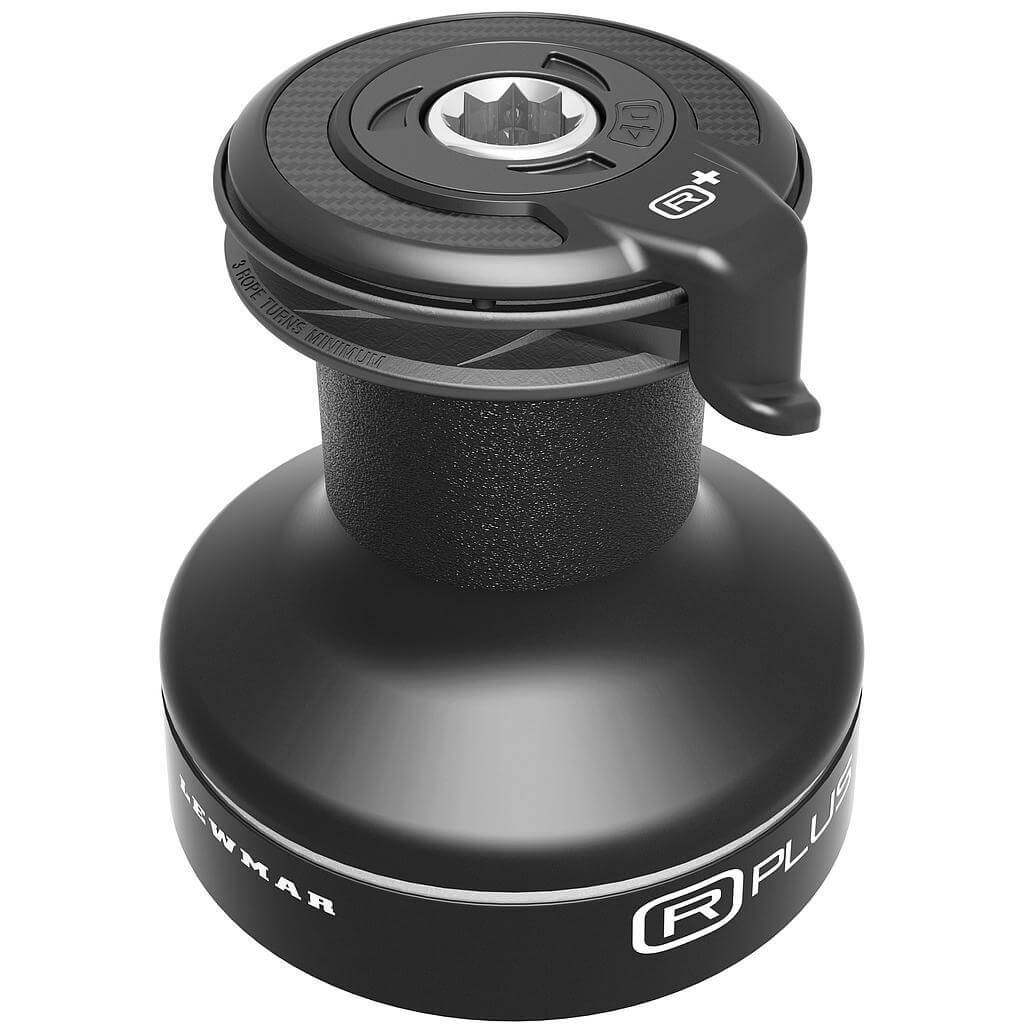

Lewmar's Self-Tailing EVO® Race+ Black Ionised Winch
Lewmar's EVO® Race+™ winches use a lightweight cast aluminium base stem and machined aluminium upper stem, together with other advanced material choices, to offer significant weight savings over standard EVO® winches.
Features
Lightweight centre stem
Lightened main spindle
Cast aluminium feeder arm
Composite bearing technology
"No tools" servicing
Carbon fibre inlay
Silver trim stripe
White pad-printed decals
Black anodised drum
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
Recommended line - Max Ø (mm) | 14 |
Recommended line - Min Ø (mm) | 8 |
Size | 45 |
Style | Self-Tailing |
Material | Aluminium |
Line recovery per rotation - 1st gear (mm) | 233 |
Line recovery per rotation - 2nd gear (mm) | 73 |
Base Ø (mm) | 168 |
Drum Ø (mm) | 87 |
Height (mm) | 177.7 |
Line entry height (mm) | 84 |
Gears (Manual) | 2-Speed |
Warranty (yrs) | 7 |
B (mm) | 168 |
D (mm) | 87 |
H (mm) | 177.7 |
L (mm) | 84 |
Gear ratio 1 (X : 1) | 2.4 |
Gear ratio 2 (X : 1) | 7.6 |
Power ratio 1 (X : 1) | 13.9 |
Power ratio 2 (X : 1) | 44.8 |
Weight (g) | 4800 |
