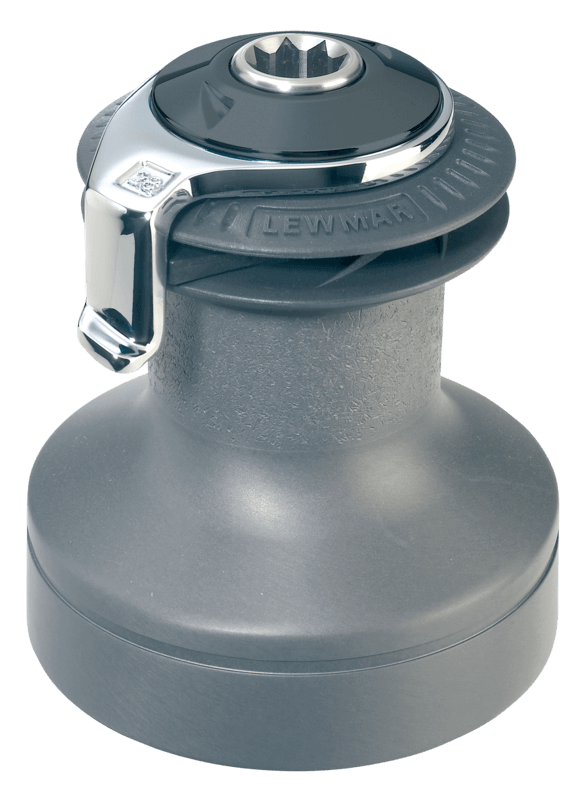

Specifications for Lewmar 50 2-Speed Self-Tailing Alloy Grey Ocean Winch
| Recommended line - Max Ø (mm) | 16 |
| Recommended line - Min Ø (mm) | 8 |
| Size | 50 |
| Style | Self-Tailing |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 267 |
| Line recovery per rotation - 2nd gear (mm) | 71 |
| Base Ø (mm) | 200 |
| Drum Ø (mm) | 105 |
| Height (mm) | 238 |
| Line entry height (mm) | 106 |
| Gears (Manual) | 2-Speed |
| SWL (kg) | 2756 |
| Warranty (yrs) | 3 |
| B (mm) | 200 |
| D (mm) | 105 |
| H (mm) | 238 |
| L (mm) | 106 |
| Gear ratio 1 (X : 1) | 2.8 |
| Gear ratio 2 (X : 1) | 10.5 |
| Power ratio 1 (X : 1) | 13.8 |
| Power ratio 2 (X : 1) | 50.6 |
| Weight (g) | 11300 |
|
Lewmar - How to Service an Ocean Winch
A step-by-stepy guide to serviving the Ocean winch by Lewmar
|
|
|
Manual-Winch Part Manual - Volume 10.pdf
Manual - Volume 10
|
|
|
|
Manual-Winch Service Manual B2304 iss6-2.pdf
B2304 - Issue 6
|
|
|
|
DRILLING_TEMPLATES copy-2.pdf
Drilling Templates for EVO and Ocean Winches 14ST-65ST
|
Lewmar's Self-Tailing Ocean Alloy Grey Winch
Lewmar's Ocean winch range is the most popular winch ever made. Its styling still attracts boat builders looking for a classic look, or boat owners looking to upgrade or replace their existing winches.
Features
Easy Servicing - no tools required. Simply unscrew the top cap with your fingers to remove the drum and provide access to the gear train
Choice of two finishes - Ocean winches are available in grey alloy and chrome bronze for the cruising sailor
Manual to Electric - Conversion kits are available from size 40 and above
Available in Size 16 to Size 65
Solid construction respected by boat builders and sailors for generations
Specifications
| Recommended line - Max Ø (mm) | 16 |
| Recommended line - Min Ø (mm) | 8 |
| Size | 50 |
| Style | Self-Tailing |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 267 |
| Line recovery per rotation - 2nd gear (mm) | 71 |
| Base Ø (mm) | 200 |
| Drum Ø (mm) | 105 |
| Height (mm) | 238 |
| Line entry height (mm) | 106 |
| Gears (Manual) | 2-Speed |
| SWL (kg) | 2756 |
| Warranty (yrs) | 3 |
| B (mm) | 200 |
| D (mm) | 105 |
| H (mm) | 238 |
| L (mm) | 106 |
| Gear ratio 1 (X : 1) | 2.8 |
| Gear ratio 2 (X : 1) | 10.5 |
| Power ratio 1 (X : 1) | 13.8 |
| Power ratio 2 (X : 1) | 50.6 |
| Weight (g) | 11300 |
