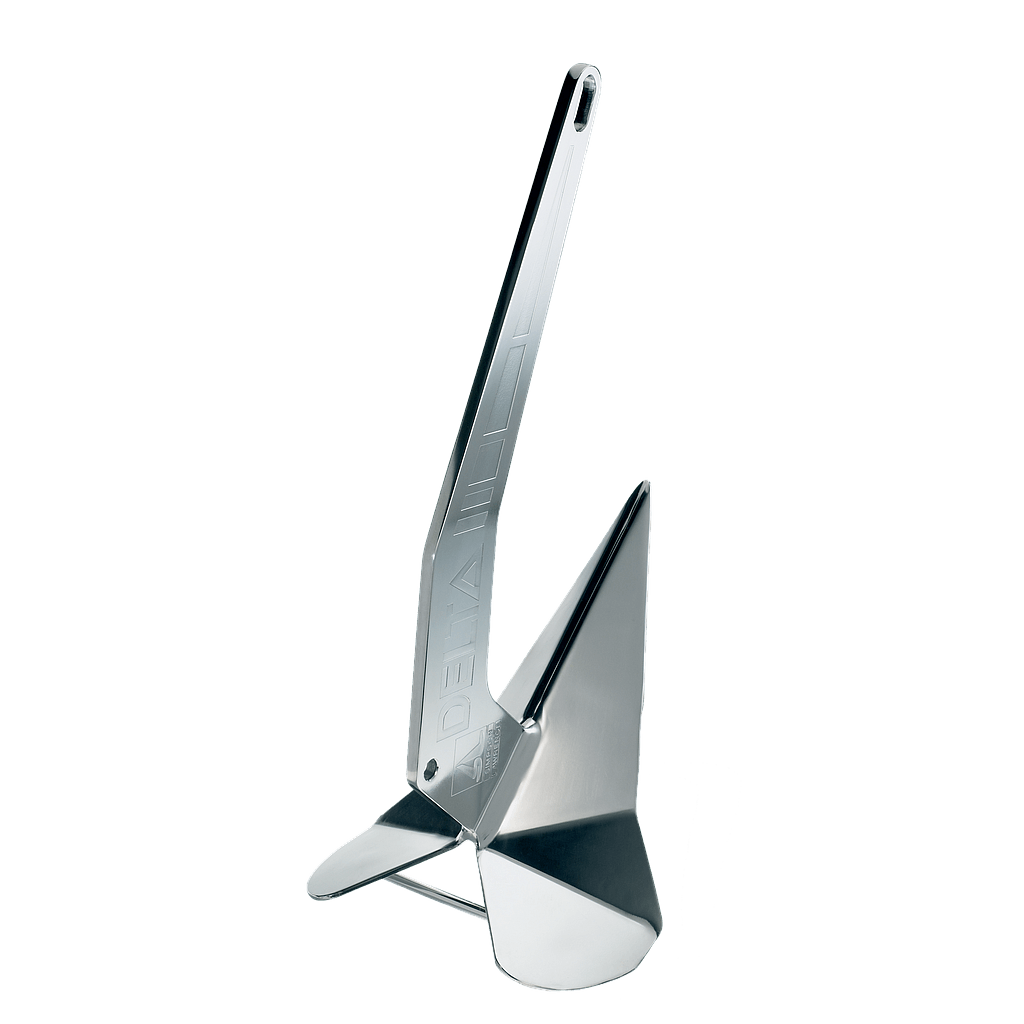

Specifications for Lewmar Delta® ss 32kg/70lbs
| Recommended chain size (mm) | 10 |
| Anchor weight (kg) | 32 |
| Recommended Boat size - Max (ft) | 66 |
| Recommended Boat size - Min (ft) | 55 |
| Material | Stainless Steel |
| Warranty (yrs) | Lifetime guarantee |
| A (mm) | 1026 (±21) |
| B (mm) | 455 (±9) |
| C (mm) | 16 |
| D (mm) | 774 (±15) |
| E (mm) | 417 (±8) |
| Weight (g) | 32000 |
|
32kg epsilon_side_views_PRINT_ROLLBAR_32kg.pdf
Printable fit guide template
|
|
|
|
32kg epsilon_side_views_PRINT_NO-BAR_32kg.pdf
Printable fit guide template
|
|
|
|
how to use the fit guide_0.pdf
|
|
|
|
Lewmar_Catalogue_AMPL_Anchoring.pdf
|
|
|
|
CAD-DeltaRange.pdf
|
Its unique shank profile and ballasted tip make the Delta® anchor self-launching. The low centre of gravity and self-righting geometry ensure that the Delta® anchor will set immediately. Consistent and reliable in performance, the Delta® anchor has Lloyd's Register General Approval of an Anchor Design as a High Holding Power anchor and is specified as the primary anchor used by numerous National Lifeboat organisations. Also available in premium grade Duplex/High Tensile stainless steel.
All Delta® anchors are "guaranteed for life against breakage". Lloyd's Test Certification is available for individual Delta® anchors by arrangement.
**Damage by deformation or bending is not covered by this guarantee.**
• Manufactured from high grade manganese steel or 316 stainless steel
• Self launching
• Lloyd's Register Type Approval
• Guaranteed for life against Breakage
• Lloyd's Test Certification available
Specifications
| Recommended chain size (mm) | 10 |
| Anchor weight (kg) | 32 |
| Recommended Boat size - Max (ft) | 66 |
| Recommended Boat size - Min (ft) | 55 |
| Material | Stainless Steel |
| Warranty (yrs) | Lifetime guarantee |
| A (mm) | 1026 (±21) |
| B (mm) | 455 (±9) |
| C (mm) | 16 |
| D (mm) | 774 (±15) |
| E (mm) | 417 (±8) |
| Weight (g) | 32000 |
