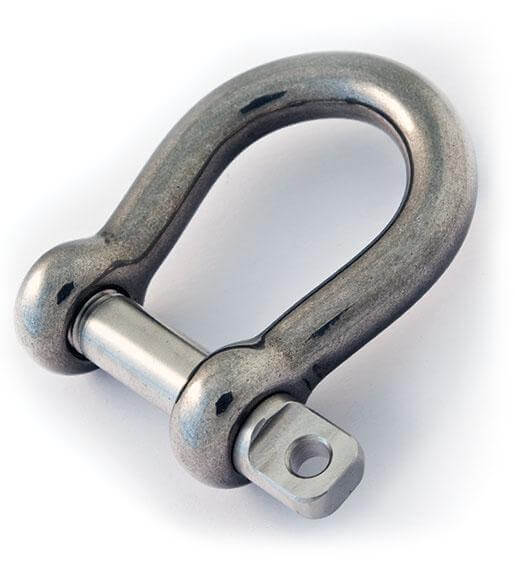

Specifications for Petersen 16mm Shake Proof Bow Shackle Retained Pin
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Pin Ø (mm) | 16 |
| NBL (kg) | 8000 |
| B (mm) | 14.3 |
| J (mm) | 29 |
| L (mm) | 60 |
| P (mm) | 16 |
| W (mm) | 43 |
| Weight (g) | 500 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Petersen shackles are produced from 316L grade stainless steel; using electrical upset forging technique, to ensure that the grain flows around the shackle head to give maximum strength. This gives the Petersen shackles a high corrosion resistance and excellent fatigue strength.
Shake proof pins reduce the vibration of the pin, to reduce the risk of the pin shaking loose from the shackle.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Pin Ø (mm) | 16 |
| NBL (kg) | 8000 |
| B (mm) | 14.3 |
| J (mm) | 29 |
| L (mm) | 60 |
| P (mm) | 16 |
| W (mm) | 43 |
| Weight (g) | 500 |
