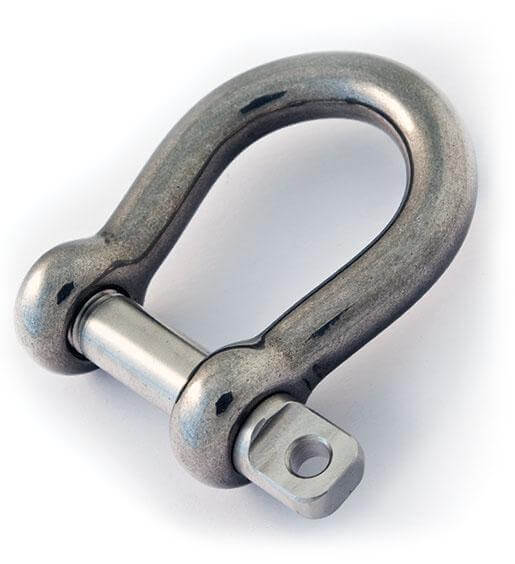

Specifications for Petersen 5mm Socket Pin Bow Shackle
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Pin Ø (mm) | 5 |
| NBL (kg) | 1200 |
| B (mm) | 5 |
| J (mm) | 10 |
| L (mm) | 22 |
| P (mm) | 5 |
| W (mm) | 16 |
| Weight (g) | 14 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Petersen shackles are produced from 316L grade stainless steel; using electrical upset forging technique, to ensure that the grain flows around the shackle head to give maximum strength. This gives the Petersen shackles a high corrosion resistance and excellent fatigue strength.
The socket pin allows the pin to sit flush with the shackle, reducing the risk of snagging.
