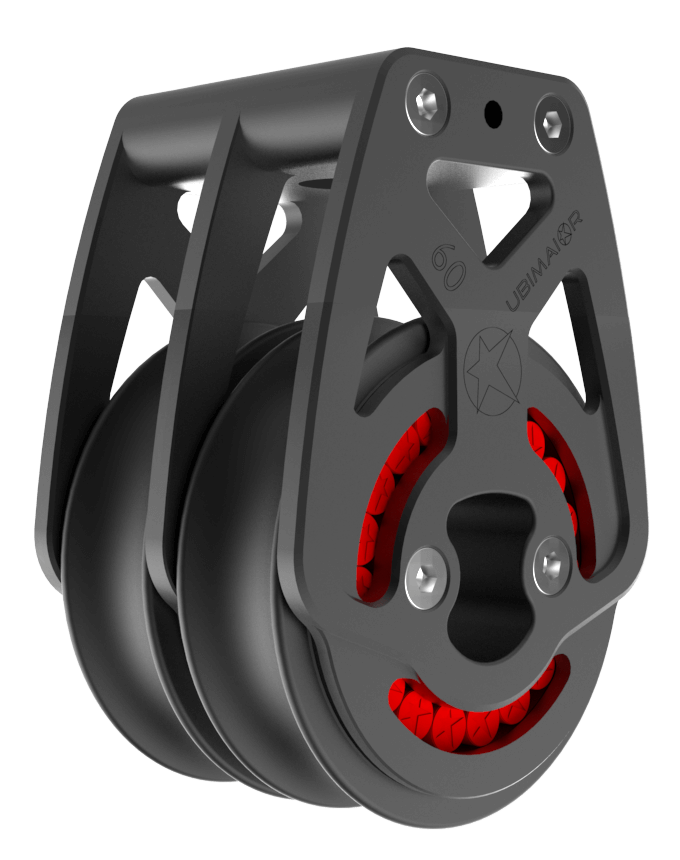

The RT line turns 30 years of evolution in this field into a truly ALL ROUND range of components designed for any kind of boat.
RT blocks can bear very heavy weights and ensure the smoothest running mechanism thanks to TORLON (HIGH LOAD line) or DELRIN (LOW LOAD line) roller cage. On the Delrin, balls in two holding cages support side loads, while every tiny detail on the block cheeks is meticulously designed.
Their layout allows for the use of RT’s both with a traditional mechanical connection (an HR shackle on HIGH LOAD models) or with a textile connection (RTSh/RTShG), as well as for use as a becket.
Inside, the two cheeks are interlocked so that they release the fixing screws, guaranteeing strength and longevity that goes beyond expectations.
The turned sheave, which is made of an aluminum alloy (even in the smaller size), ensures excellent rolling, even when bearing heavy loads.
Specifications
| Bearing type | Roller bearing |
| Bearing material | Delrin® |
| Recommended line - Max Ø (mm) | 14 |
| Total length (mm) | 120 |
| Sheave Ø (mm) | 80 |
| Sideplate material | Aluminium |
| Ratchet | No |
| Sheave material | Aluminium |
| SWL (kg) | 1850 |
| NBL (kg) | 370 |
| Weight (g) | 0.43 |
