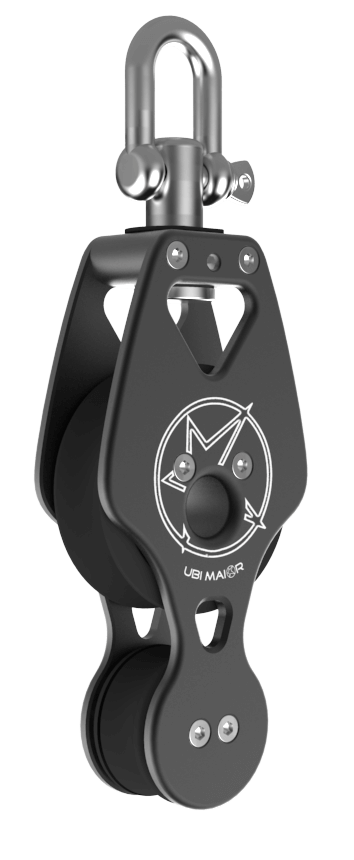

Designed for the new generation of increasingly performant cruisers, the blocks in the YACHT CLUB series follow a new lay-out, which foresees the use of shackles to be fixed, and are guaranteed to meet the highest strength, versatility and design criteria.
The whole block is made to the highest resistance and reliability standards as each component is manifactured by machining and no structural parts are cast or molded.
Despite the fact that this range is designed for cruisers, each component guarantees high level performance interms of both load capacity and longevity- features which are generally only offered by high levels products. Available in sizes ranging from a 40mm sheave diameter (these are the only products on the market with this characteristic).
Their layout allows for the use of YC’s both with a traditional mechanical connection or with a textile connection.
Specifications
| Bearing type | Ball bearing |
| Bearing material | Delrin® |
| Recommended line - Max Ø (mm) | 12 |
| Total length (mm) | 160 |
| Sheave Ø (mm) | 60 |
| Sideplate material | Aluminium |
| Ratchet | No |
| Sheave material | Delrin® |
| SWL (kg) | 1250 |
| NBL (kg) | 2500 |
| Weight (g) | 0.23 |
