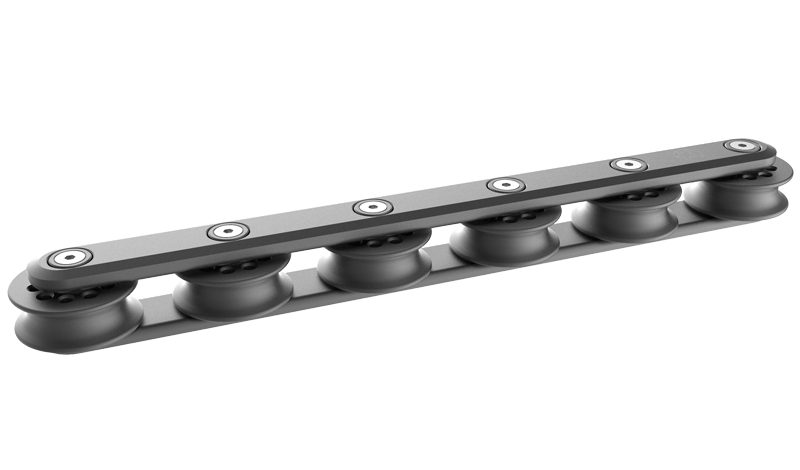

The UBI MAIOR standard range of organisers are available with sheave diameter of 35 or 55mm in groupings of 3, 4, 5 or 6 sheaves.
Screws not included.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
Total width (mm) | 55 |
Recommended line - Max Ø (mm) | 14 |
Total height (mm) | 36 |
Total length (mm) | 544 |
Sheave Ø (mm) | 55 |
Sideplate material | Aluminum |
Sheave material | Aluminium |
SWL (kg) | 1800 |
NBL (kg) | 3600 |
A (mm) | 544 |
B (mm) | 55 |
C (mm) | 36 |
Weight (g) | 715 |
