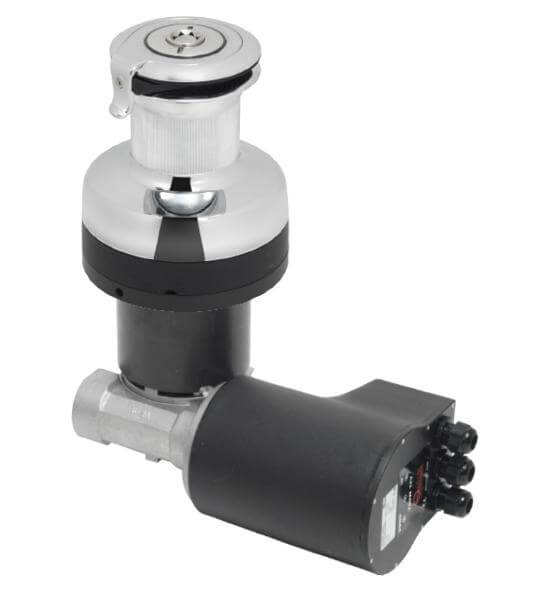

Antal 44 2-Speed Electric (Horizontal) 24V Chromed Bronze Winch (2-Speed Manual)
Specifications for Antal 44 2-Speed Electric (Horizontal) 24V Chromed Bronze Winch (2-Speed Manual)
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Skirt Details | Black Aluminium |
| Size | 44 |
| Style | Horizontal |
| Power (W) | 700 |
| Deck thickness Max (mm) | 64 |
| Voltage (V) | 24 |
| Material | Chromed Bronze |
| Line recovery per rotation - 1st gear (mm) | 80 |
| Line recovery per rotation - 2nd gear (mm) | 38 |
| Base Ø (mm) | 173 |
| Drum Ø (mm) | 93 |
| Height (mm) | 202 |
| Motor Length (mm) | 263 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 3 |
| A (mm) | 189 |
| B (mm) | 263 |
| C (mm) | 115 |
| D (mm) | 173 |
| d (mm) | 93 |
| E (mm) | 64 |
| H (mm) | 202 |
| Speed (Motor) | 2-Speed |
| Gear ratio 1 (X : 1) | 3.7 |
| Gear ratio 2 (X : 1) | 8 |
| Power ratio 1 (X : 1) | 20 |
| Power ratio 2 (X : 1) | 43 |
| Pulling load - Max (kg) | 900 |
| Line speed - 1st gear (m/min) | 12 |
| Line speed - 2nd gear (m/min) | 5.5 |
| Weight (g) | 20700 |
Two Reduced Speed Electric Horizontal Winch
The three models XT40, XT44 and XT48 are powered with a 700 Watt motor, available in 12 and 24 volt versions. Two switches, one control box and one breaker complete the system.
CHROME (CH): the drum, ST disks and ST arm are entirely chrome-plated. All chromed parts are highly polished, thickly nickel-plated and finally finished in chrome.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
HORIZONTAL AND VERTICAL MOTORS - All the winches may be equipped with a horizontal motor and gearbox with a worm screw. The largest models may be supplied with a vertical motor which uses a high-efficiency hypocycloid speed reducer. Both solutions have been studied to ensure particularly compact dimensions and maximum silent operation.
MANUAL USE - Simply insert the handle to disconnect the gearbox-motor unit. Greater safety: accidental starting of the motor does not affect the winch, avoiding dangerous turning of the handle. Greater efficiency: the gearbox-motor unit does not turn in manual use, avoiding needless friction.
Specifications
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Skirt Details | Black Aluminium |
| Size | 44 |
| Style | Horizontal |
| Power (W) | 700 |
| Deck thickness Max (mm) | 64 |
| Voltage (V) | 24 |
| Material | Chromed Bronze |
| Line recovery per rotation - 1st gear (mm) | 80 |
| Line recovery per rotation - 2nd gear (mm) | 38 |
| Base Ø (mm) | 173 |
| Drum Ø (mm) | 93 |
| Height (mm) | 202 |
| Motor Length (mm) | 263 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 3 |
| A (mm) | 189 |
| B (mm) | 263 |
| C (mm) | 115 |
| D (mm) | 173 |
| d (mm) | 93 |
| E (mm) | 64 |
| H (mm) | 202 |
| Speed (Motor) | 2-Speed |
| Gear ratio 1 (X : 1) | 3.7 |
| Gear ratio 2 (X : 1) | 8 |
| Power ratio 1 (X : 1) | 20 |
| Power ratio 2 (X : 1) | 43 |
| Pulling load - Max (kg) | 900 |
| Line speed - 1st gear (m/min) | 12 |
| Line speed - 2nd gear (m/min) | 5.5 |
| Weight (g) | 20700 |
