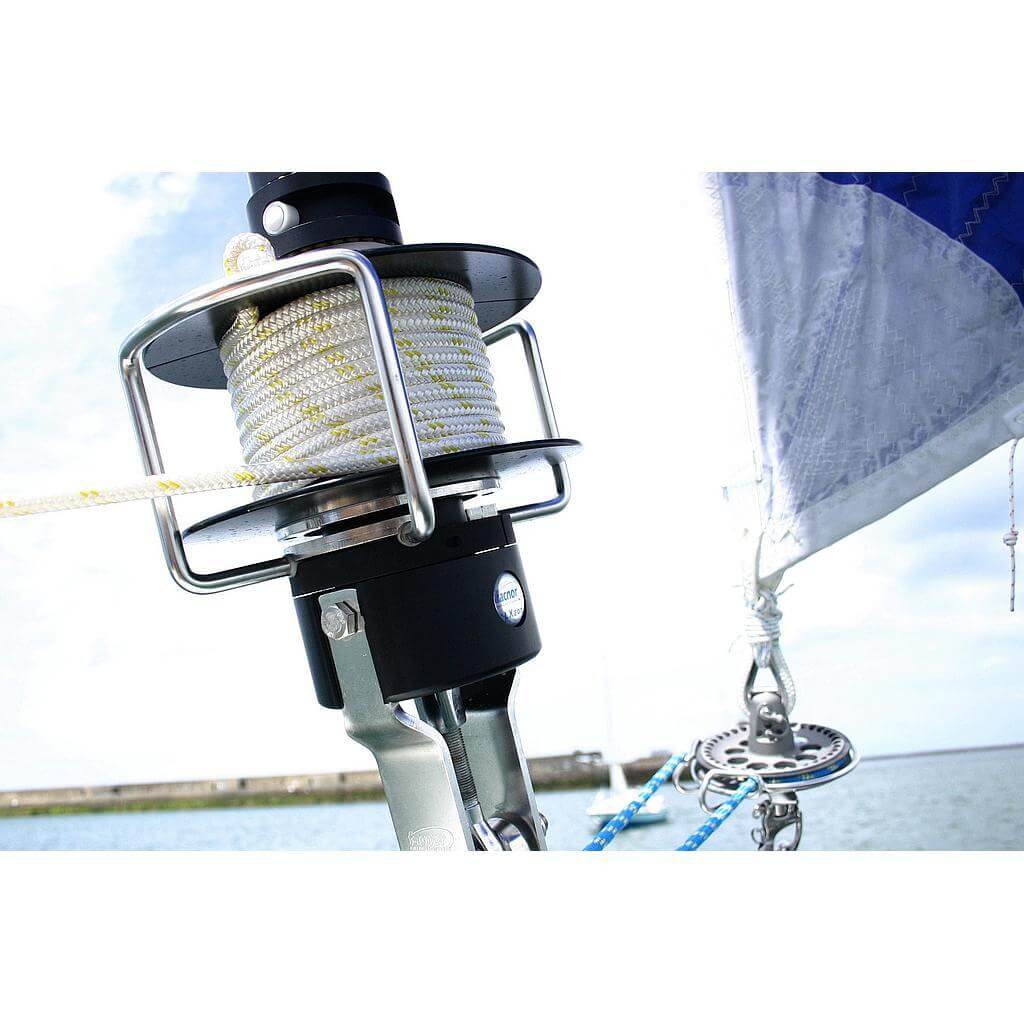

The LS/LX/RX ranges are Facnor’s well established, genoa reefing furlers with aluminium foil sections. Their extensive range has been tried and tested repeatedly by marine professionals and offshore sailors, with proven performance, durability and reliability.
The LS range is Facnor’s standard cruising solution, and has the following key features:
Easy installation
Strong sections & connections
Rugged, 30µ Anodized Aluminium protects parts against impacts and abrasion
360° furling line angle adjustment, for perfect alignment
Optional internal turnbuckle fitting
High load, waterproof halyard swivel
No maintenance bearings – fitted with a “bearing box”, tested over ocean races
The LS Standard kit includes: Drum, internal turnbuckle fitting, short link plates, foil sections + connections, halyard swivel, HR shackles. To use a 10mm wire diameter, it is necessary to have a removable eye or turnbuckle.
Spezifikationen
| Tauwerk Ø (mm) | 8 |
| Empfohlene max. Bootsgröße (ft.) | 43 |
| Empfohlene min. Bootsgröße (ft.) | 40 |
| Extrusion Ø (mm) | 41 |
| Standard Vorstaglänge (mm) | 14500 |
| Trommel Ø (mm) | 225 |
| Luff rope Ø (mm) | 5 |
| Max. Drahtdurchmesser (mm) | 10 |
| Extrusion Referenz | SX39 |
| Extrusion Gewicht (g/m) | 914 |
