UBI Maior Halyard shackle - SWL 2.5T

https://www.upffront.com/web/image/product.template/24742/image_1920?unique=e0c9769

112,46 € 112.46000000000001 EUR 124,95 €

105,00 €

10% Off

Available on request

spring sale upffront sailing systems

04
Days
:
16
Hours
:
56
Mins
:
23
Secs
  • Marke
  • Empfohlener max. Leinendurchmesser (mm)
  • Material
  • Material Grade
  • Pin Ø (mm)
  • SWL (kg)
  • NBL (kg)
  • A (mm)
  • B (mm)
  • Gewicht (g)

Diese Kombination existiert nicht.

Einheit(en)
ADD TO CART
Product Image

UBI Maior Halyard shackle - SWL 2.5T

124,95 € 112,46 €
10% Off
SKU:
N/A

30-day money-back

 14-day returns

 Express shipping available

Share :

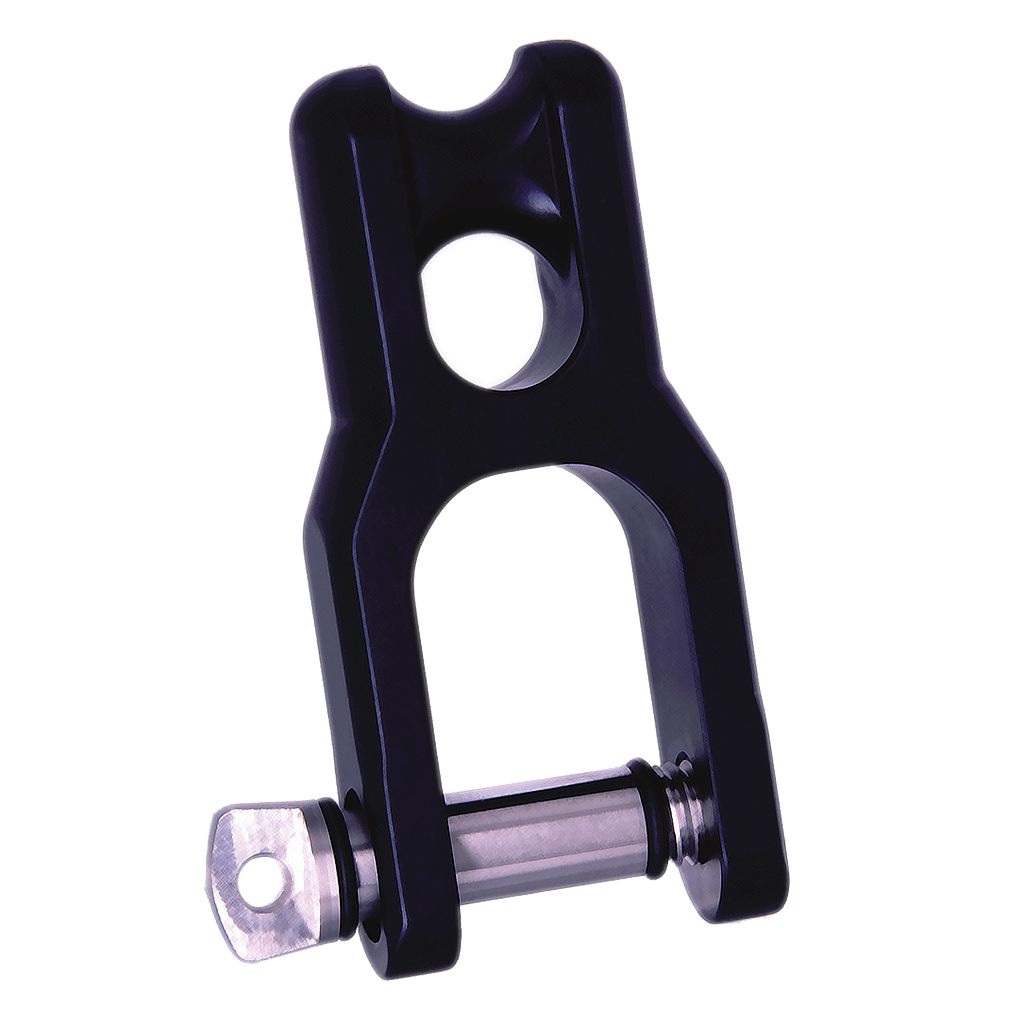

These shackle connectors from Uni Maior are designed to be used on the halyard either as a 1:1 or 2:1. When used as a 1:1 system the halyard would be attached to the eye of the shackle, preferable as an eye splice; when used as a 2:1 system the eye of the shackle becomes a low friction sheave. The main body is built in aluminium (grade: 6082T6) with a stainless steel pin.

Spezifikationen

Empfohlener max. Leinendurchmesser (mm) 14
Material Aluminium
Material Grade 6082-T6
Pin Ø (mm) 10
SWL (kg) 2500
NBL (kg) 5000
A (mm) 24
B (mm) 28
Gewicht (g) 93
