Specifications for UBI Maior Halyard shackle - SWL 2.5T
| Recommended line - Max Ø (mm) | 14 |
| Material | Aluminium |
| Material Grade | 6082-T6 |
| Pin Ø (mm) | 10 |
| SWL (kg) | 2500 |
| NBL (kg) | 5000 |
| A (mm) | 24 |
| B (mm) | 28 |
| Weight (g) | 93 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

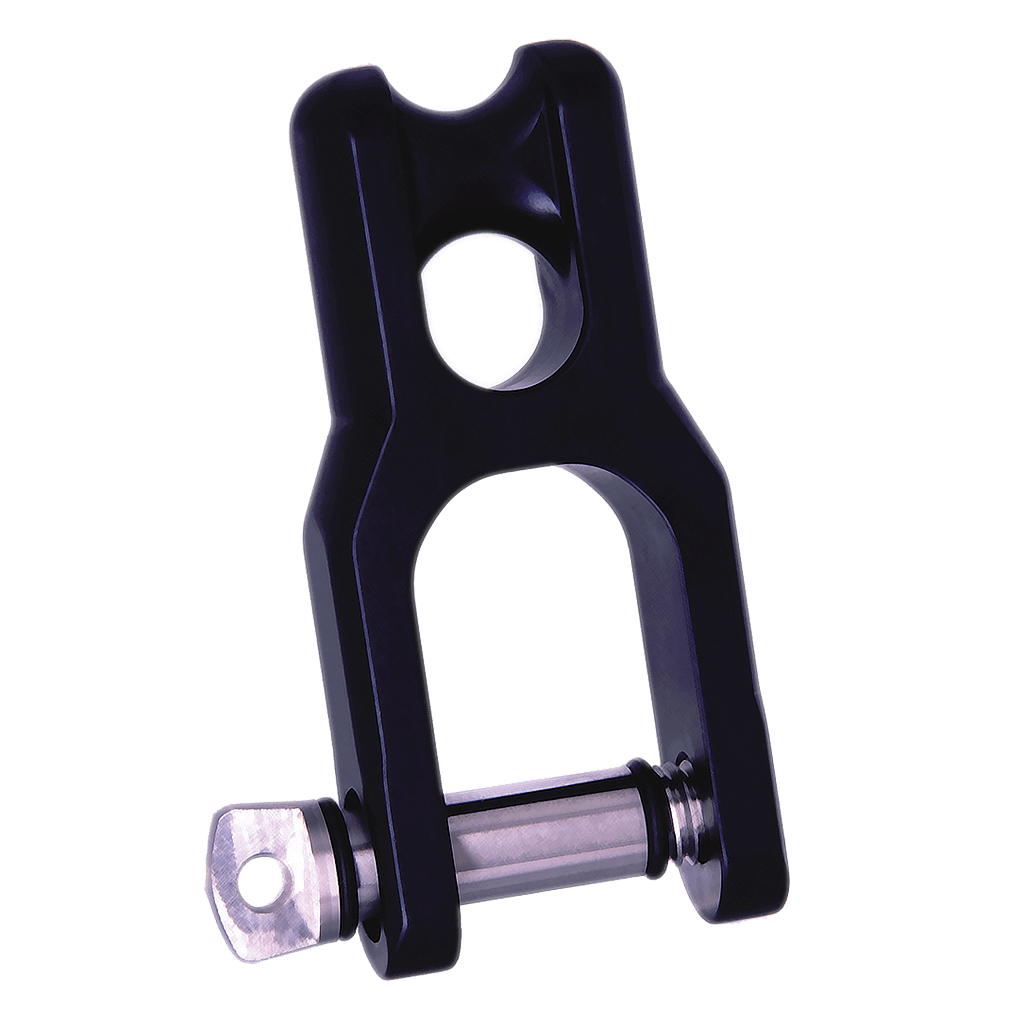

These shackle connectors from Uni Maior are designed to be used on the halyard either as a 1:1 or 2:1. When used as a 1:1 system the halyard would be attached to the eye of the shackle, preferable as an eye splice; when used as a 2:1 system the eye of the shackle becomes a low friction sheave. The main body is built in aluminium (grade: 6082T6) with a stainless steel pin.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Recommended line - Max Ø (mm) | 14 |
| Material | Aluminium |
| Material Grade | 6082-T6 |
| Pin Ø (mm) | 10 |
| SWL (kg) | 2500 |
| NBL (kg) | 5000 |
| A (mm) | 24 |
| B (mm) | 28 |
| Weight (g) | 93 |
