Specifications for Antal Circuit Breaker
| Amps | 40 or 50 or 70 or 100 or 120 |
| odoo_technical | upgrade_1 or upgrade_2 or upgrade_3 or upgrade_4 or upgrade_5 |

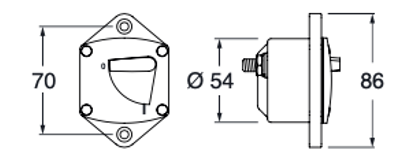

| Hauteur (mm) | 86 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
A breaker should be mounted to all Antal Winches protect the motor against overload.
| 12V | 24V | |||
| 40 Amp (AN-A041) | 700W | XT40 XT44 XT48 | ||
| 50 Amp (AN-A051) | 1000W | XT52 XT62 | ||
| 70 Amp (AN-A071) | 700W | XT40 XT44 XT48 | 1500W | XT66 XT70 |
| 100 Amp (AN-A101) | 1000W | XT52 XT62 | 2000W | XT80.3 W80.3 |
| 150 Amp (AN-A151) | 1500W | XT66 XT70 | 3000W | W90.3 |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Amps | 40 ou 50 ou 70 ou 100 ou 120 |
| odoo_technical | upgrade_1 ou upgrade_2 ou upgrade_3 ou upgrade_4 ou upgrade_5 |
| Hauteur (mm) | 86 |
