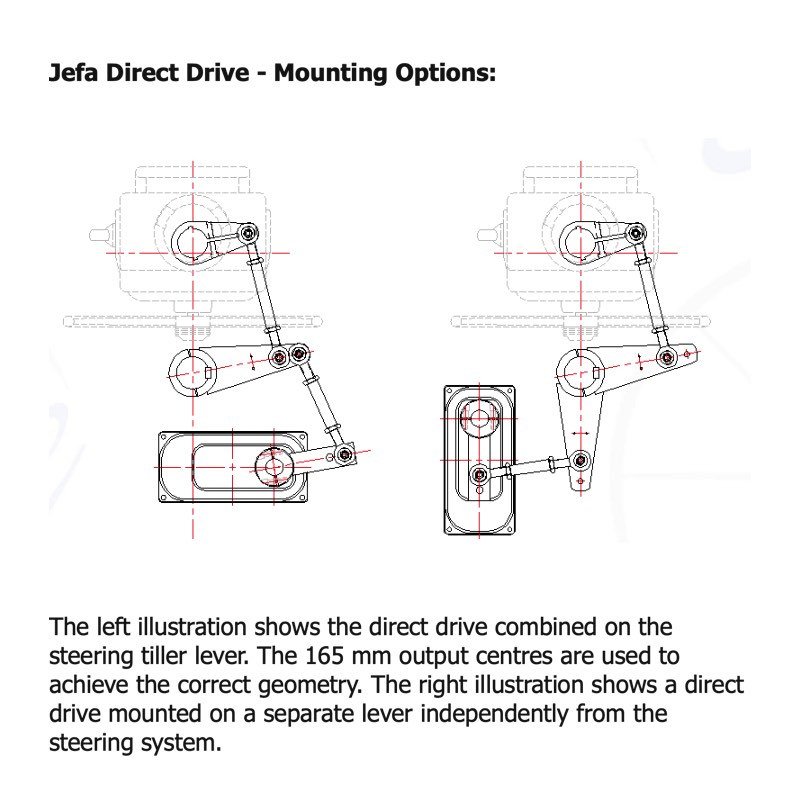

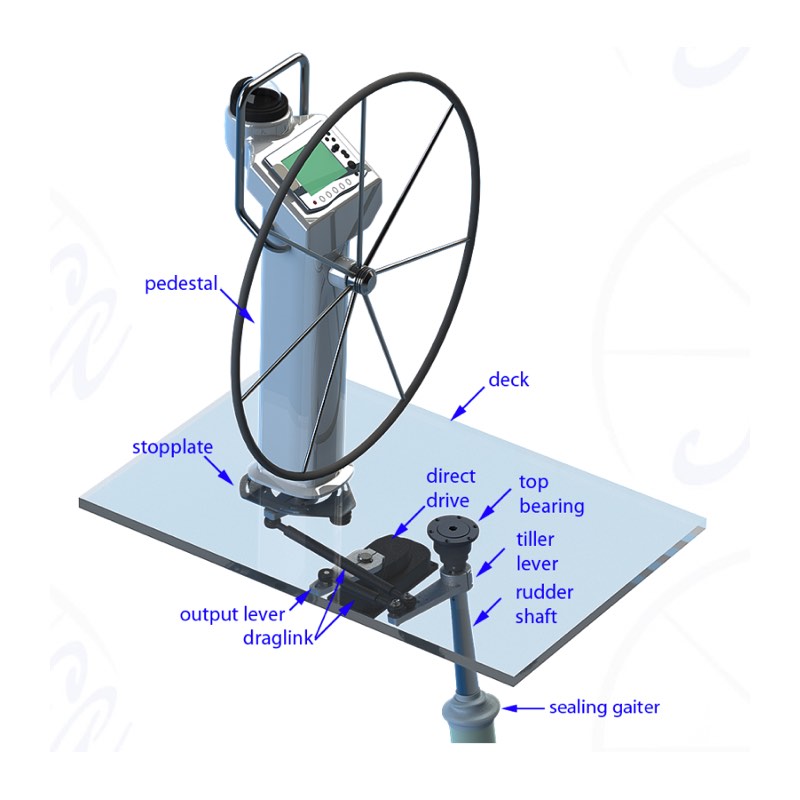

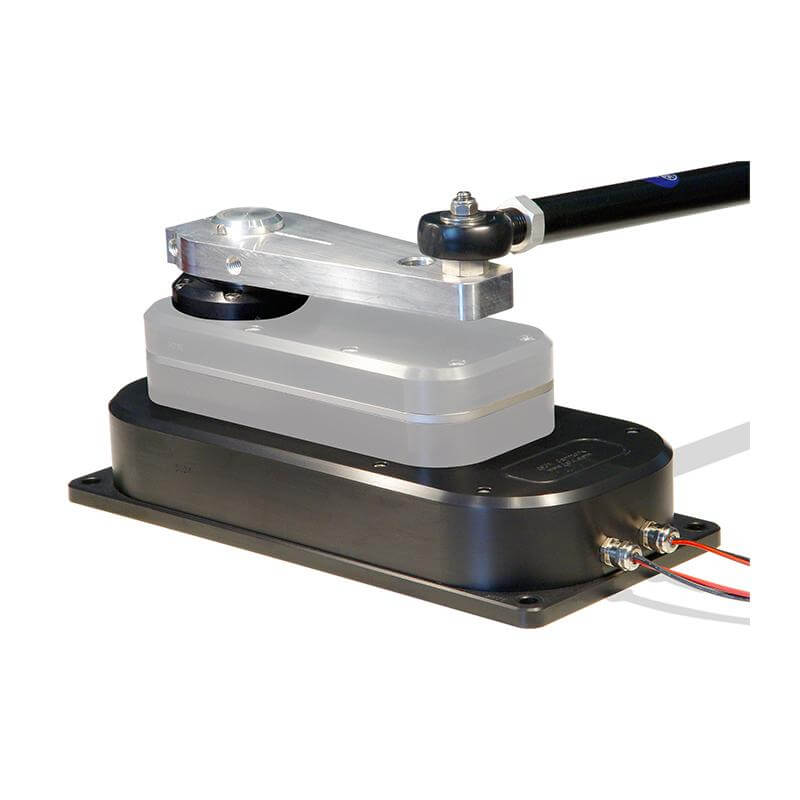

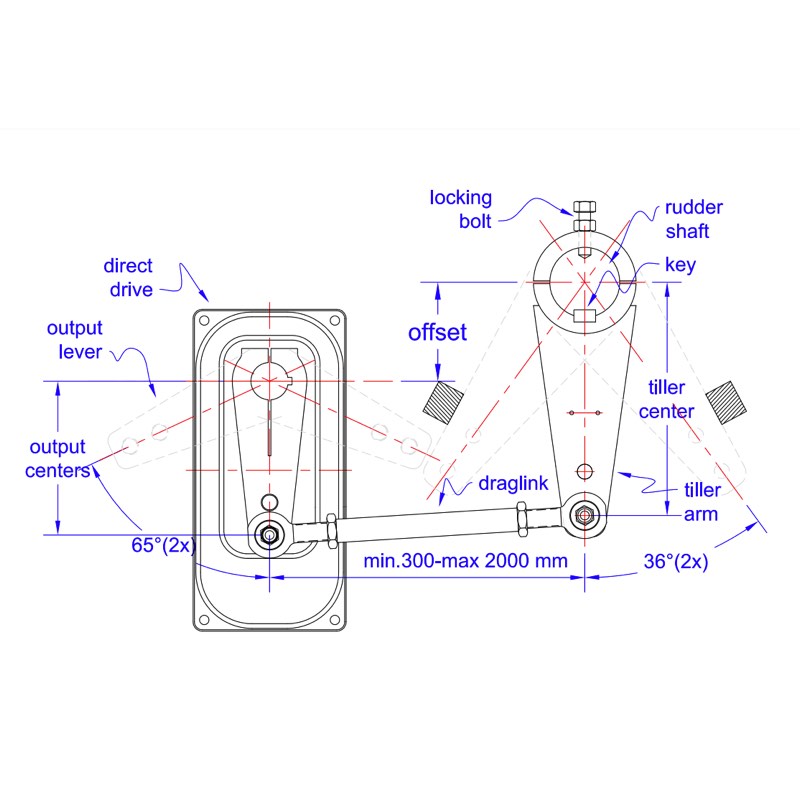

The Jefa Direct Drives are extremely robust, compact units with simple installation. The big advantage of the Jefa Direct Drives is that the rudder feedback arm is mounted on the Drive itself which saves a considerable amount of installation and system tuning time. The 150 KgM output torque is good for boats from 30 feet up to 45 feet. The Direct Drive controls the rudder using a drag link which can be used directly on the existing tiller arm, via the quadrant or and independent tiller arm. The unit can be mounted in any orientation, even upside down. These units are built for 24hr continuous operation and have a total weight of 12kg
Available in 12V only.
Spécifications
| Taille bâteau recommandée - Max (ft) | 45 |
| Taille bâteau recommandée - Min (ft) | 30 |
| Tension de fonctionnement | 12 |
| Couple max (kgM) | 150 |
| Consommation (mA) | 1400 |
| Garantie (année) | 2 |
| Poids (g) | 12000 |
