Specifications for LOOP Products Furling Thimble -11 mm
| Recommended line - Max Ø (mm) | 11 |
| Fitting width (mm) | 15 |
| Pin Ø (mm) | 8-10 |
| SWL (kg) | 2500 |
| NBL (kg) | 5000 |
| A (mm) | 70 |
| B (mm) | 38 |
| C (mm) | 11 |
| D (mm) | 15 |
| Weight (g) | 36 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
L-Kohlhoff Loop Products Furling Thimbles 9-15_001.pdf
Kohlhoff Loop Products FT7-FT15 Furling Thimbles Technical Drawing
|
|
|
|
L-Kohlhoff Loop Products Furling Thimble 11_001.pdf
Kohlhoff Loop Products FT11 Furling Thimble Technical Drawing
|
|
|
|
L-Kohlhoff Loop Products Furlingthimble Datsheet EN_001.pdf
Kohlhoff Loop Products Furlingthimble Datasheet
|
|
|
|
L-Kohlhoff Loop Products Catalogue 2018 EN_001.pdf
Kohlhoff Loop Products Catalogue 2018
|

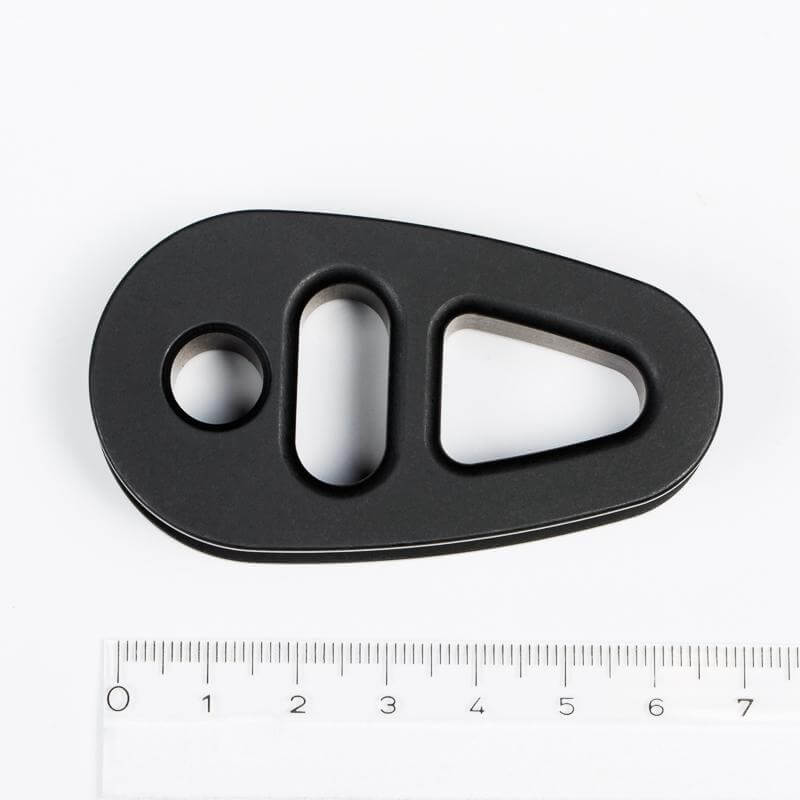

KOHLHOFF LOOP® Furling Thimbles are made of high quality black anodized alloy. They have a straight pin hole and fit most common furling unit jaws. The lashing eye is smooth and round and designed to accommodate sufficient lashing to securely fasten the tack/head of the sail. Available in five different sizes specifically designed to fit standard furling rope diameters from 7 to 15mm.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Recommended line - Max Ø (mm) | 11 |
| Fitting width (mm) | 15 |
| Pin Ø (mm) | 8-10 |
| SWL (kg) | 2500 |
| NBL (kg) | 5000 |
| A (mm) | 70 |
| B (mm) | 38 |
| C (mm) | 11 |
| D (mm) | 15 |
| Weight (g) | 36 |
