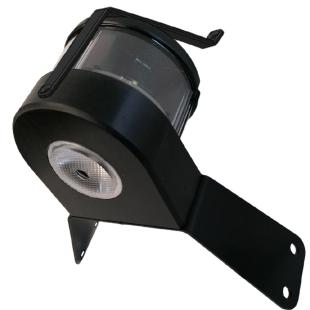

Mantagua Combined aluminium mast light 2NM and deck floodlight - 25° - Matt anodised aluminium
Masthead LED unit is visible for a minimum 2 nautical miles at 225°, with a 1.6 W power consumption.
The spotlight emits 370 lumen of 6000 K cool white light at 25°, with a 4.4 W power consumption.
Consumes 5 times less power than halogen and is reverse polarity protected.
The lightweight and compact anodised aluminium design of these lights is also waterproof, with a rating of IP67 making them dust proof and able to withstand 30 minutes under 1 meter of water. Furthermore they are impact proof, with a rating of IK09, protected against 10 joules impact. Equivalent to impact of 5 kg mass dropped from 200 mm above impacted surface. They comply to the COLREGS (1972), SOLAS (1974) and European Directive 2014/90/EU, with confirmation by the certification of WHEELMARK 60427/A0 MED approval.
Summary of Features:
• Range of 2 nautical miles
• Compact and light weight
• UV-resistant
• Waterproof IP67
• Low power consumption
• Regulated 9-30 VDC
• Does not disturb AIS or VHF
• Complies to European Directive 2014/90/EU
• Wheelmark 60427/A0 certified
• 2 years warranty
Specifications
| Beam angle (degrees) | 225 |
| Colour Temperature | 6000K Cool White |
| Spotlight Beam angle (degrees) | 25 |
| Light output (lumen) | 370 |
| Total width (mm) | 70 |
| Total depth (mm) | 130 |
| Power supply type | dc. |
| Visibility (NM) | 2 |
| Power (W) | 1.6 / 4.4 |
| Operating voltage (V) | 9-30 |
| Material | Anodised Aluminium |
| Height (mm) | 49 |
| Warranty (yrs) | 2 |
| Water resistance | IP67 |
| Weight (g) | 430 |
