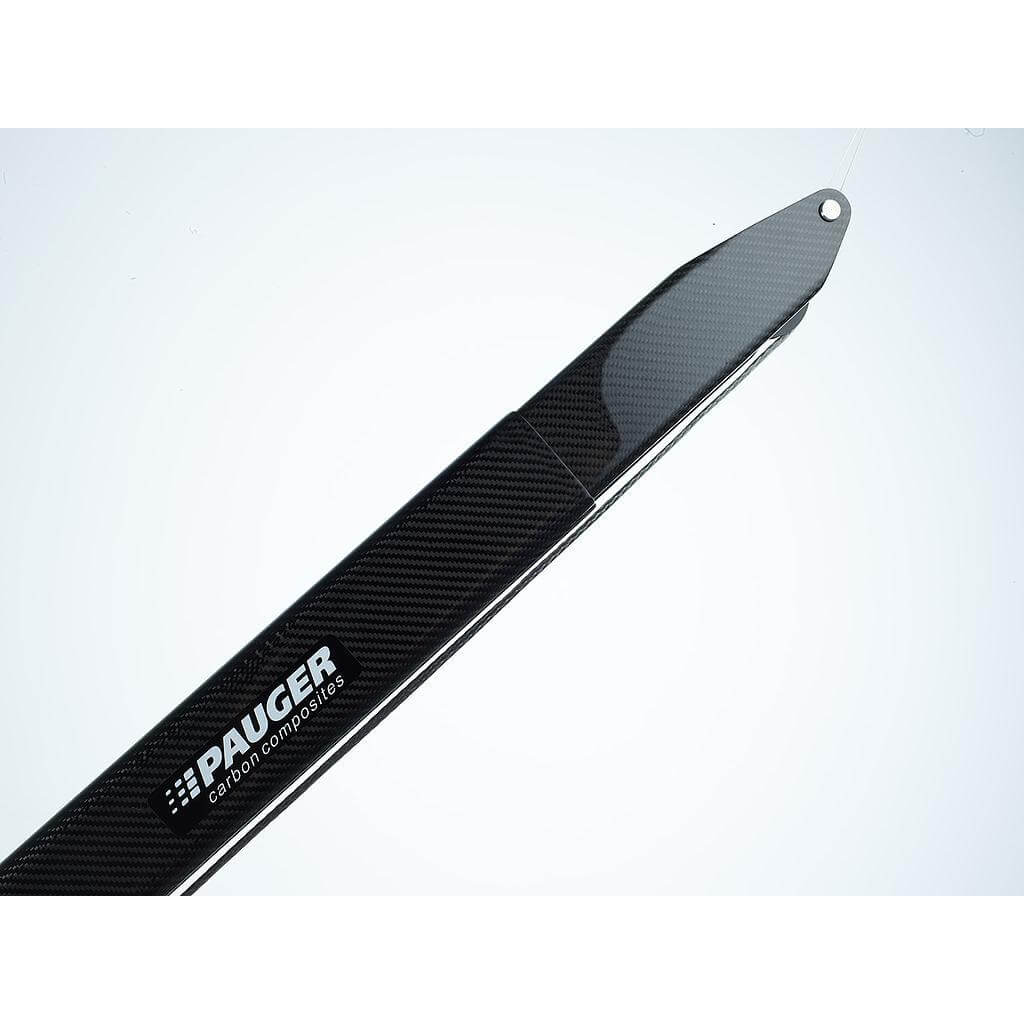

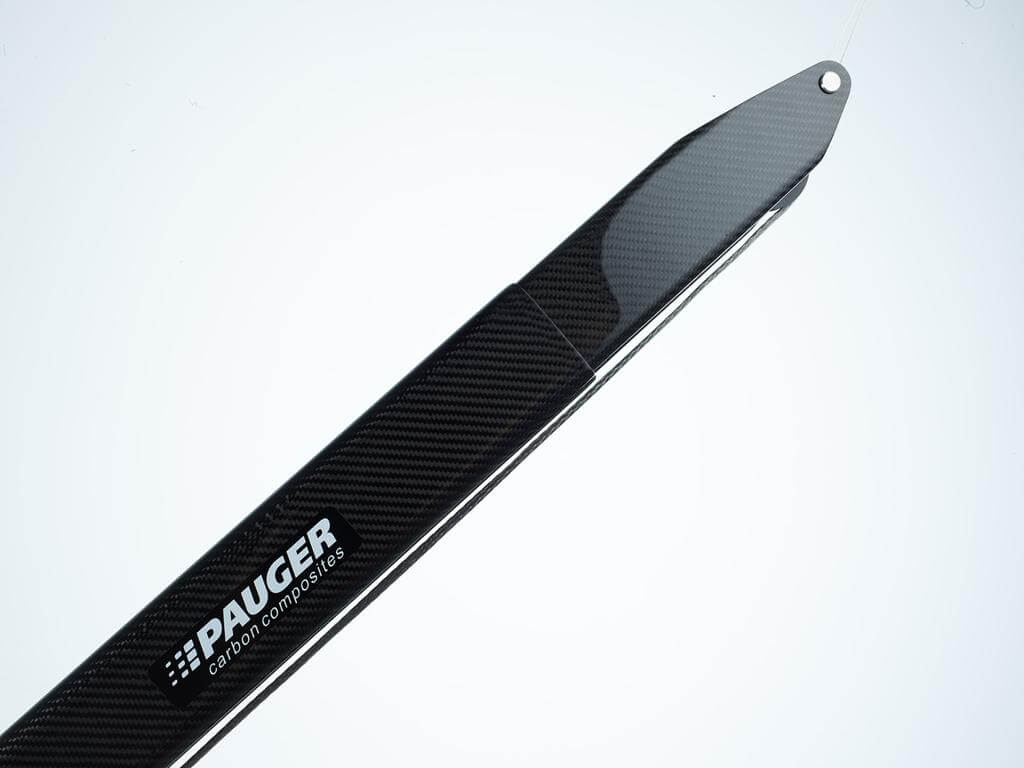

Specifications for Pauger Carbon vang size M, 1796-2000 mm
| Rope Ø (mm) | 6 |
| Recommended Boat size - Max (ft) | 38 |
| Recommended Boat size - Min (ft) | 25 |
| Length Max (mm) | 2000 |
| Purchase ratio | 5:1 |
| Spring force (N) | 1200 |
| Pin Ø (mm) | 10 |
| Stroke (mm) | 100 |
| A (mm) | 11 |
| B (mm) | 10 |
| C (mm) | 23 |
| D (mm) | 10 |
| E (mm) | 15 |
| F (mm) | 10 |
| G (mm) | 14 |
| H (mm) | 10 |
| Weight (g) | 2400 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

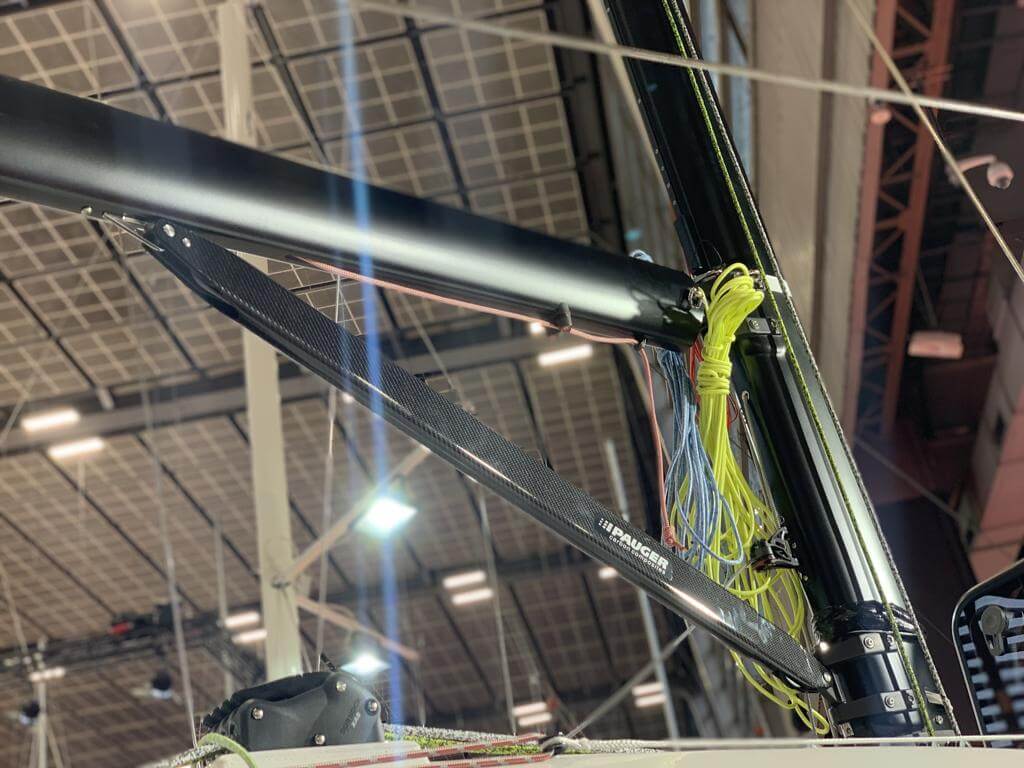

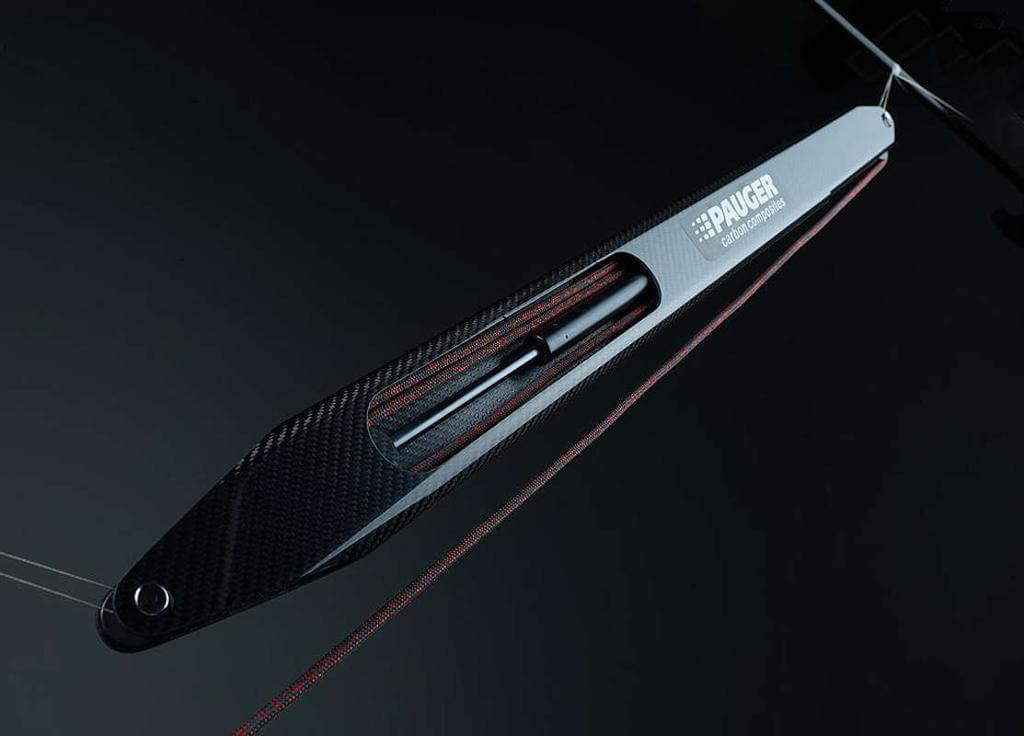

The Pauger carbon boom vang is a lightweight, stylish solution for any yacht type. A 5:1 internal purchase system keeps the design clean, while the outer surface has a clear coat varnish. The exact length required must be specified and will be cut to order.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Rope Ø (mm) | 6 |
| Recommended Boat size - Max (ft) | 38 |
| Recommended Boat size - Min (ft) | 25 |
| Length Max (mm) | 2000 |
| Purchase ratio | 5:1 |
| Spring force (N) | 1200 |
| Pin Ø (mm) | 10 |
| Stroke (mm) | 100 |
| A (mm) | 11 |
| B (mm) | 10 |
| C (mm) | 23 |
| D (mm) | 10 |
| E (mm) | 15 |
| F (mm) | 10 |
| G (mm) | 14 |
| H (mm) | 10 |
| Weight (g) | 2400 |
