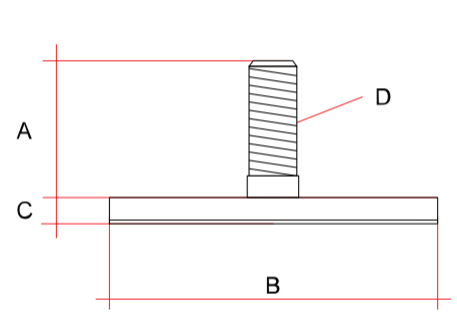

Specifications for Ropeye Stick-On Bolt - Male/Female, SS316 Padeye
| Material | Carbon or Stainless Steel or Glass fibre |
| Style | Fixed |
| SWL (kg) | 100 |
| NBL (kg) | 200 |
| A (mm) | 18 |
| B (mm) | 40 |
| C (mm) | 4 |
| D (mm) | M6 |
| Weight (g) | 8.2 |

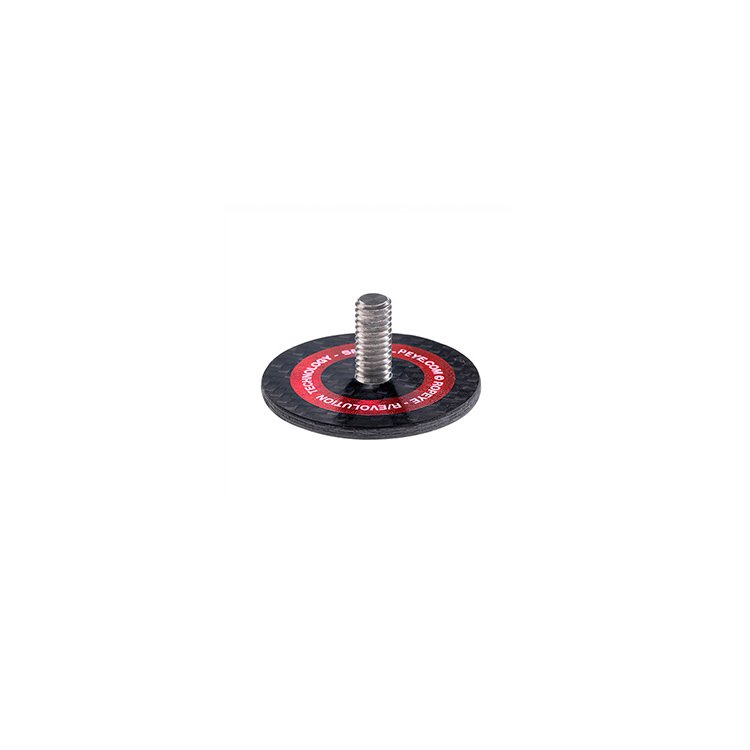

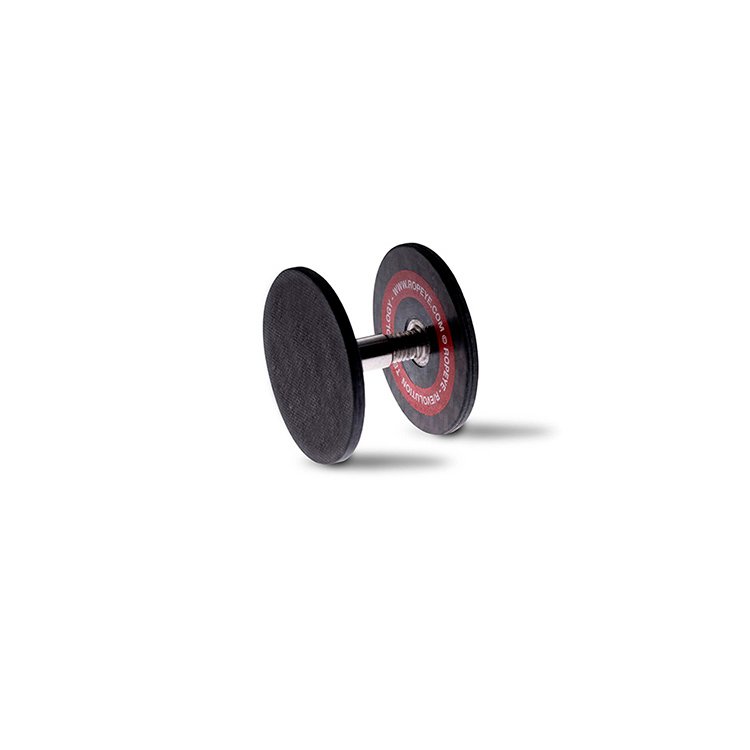

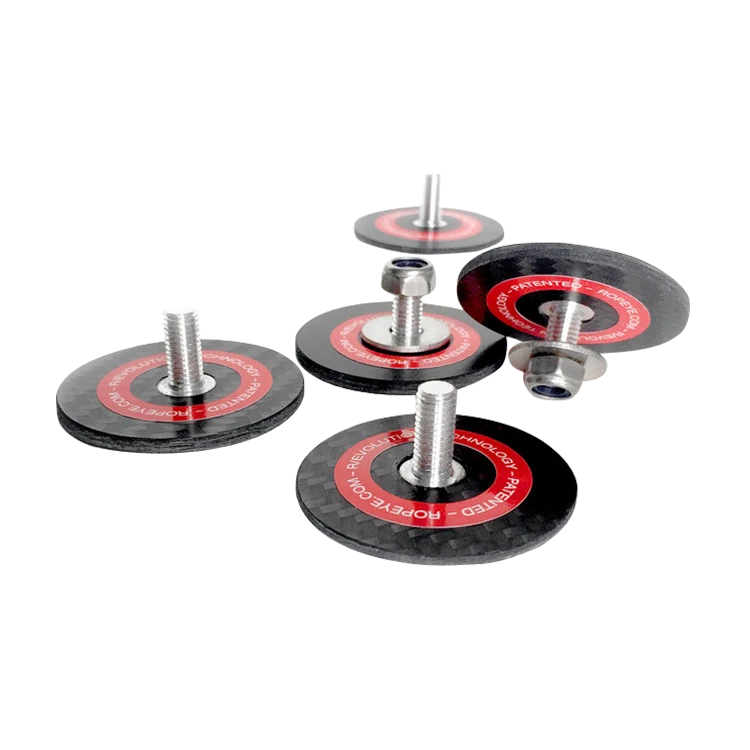

Ropeye Stick-On Bolt – Male/Female SS316 Padeye – Bonded Stainless Steel Attachment Point
The Ropeye Stick-On Bolt – Male/Female SS316 Padeye is a bonded, stainless steel attachment point designed for non-structural applications where drilling is not an option. Featuring a carbon or glass fibre base with a 30mm-long stainless steel (SS316) male or female threaded stud, this padeye offers a secure, corrosion-resistant mounting point for lightweight rigging and hardware.
This innovative solution is ideal for internal and external installations, where a clean, low-profile, and strong fixing point is required without compromising deck or bulkhead integrity.
Key Features:
✔ Bonded Installation – No Drilling Required – Attaches securely using resin-based adhesives for a permanent bond or Sikaflex for a removable option.
✔ Marine-Grade Stainless Steel (SS316) Stud – Provides maximum corrosion resistance, making it suitable for both interior and exterior applications.

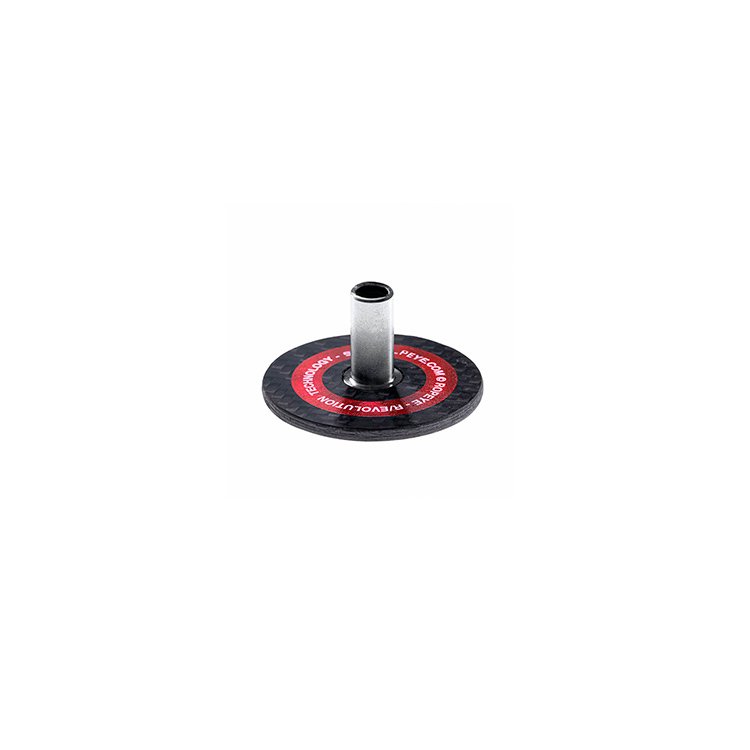

✔ Male or Female Threaded Stud – Available in both male and female configurations, ensuring compatibility with different hardware requirements.
✔ Lightweight Carbon or Glass Fibre Base – Offers strength and durability while keeping weight to a minimum.
✔ Safe Working Load of 50kg – Suitable for low-load applications, providing a secure attachment point for fittings and accessories.
Applications:
- Mounting lightweight accessories and hardware without drilling.
- Securing soft rigging components in weight-sensitive areas.
- Interior and exterior applications, including bulkheads, cabins, and deck installations.
- Ideal for performance sailing, racing yachts, and retrofit applications where permanent modifications are undesirable.
Installation:
- Prepare the surface by sanding it lightly.
- Clean the sanded area with acetone to remove dust and ensure a strong bond.
- Apply adhesive (resin-based for a permanent bond or Sikaflex for a removable option).
- Press the Ropeye Stick-On Bolt firmly into place.
- Wait 24 hours before applying any load to ensure full adhesion.
Warranty: The Ropeye Stick-On Bolt – Male/Female SS316 Padeye comes with a 2-year warranty, ensuring long-term reliability and performance.
Specifications
| Material | Carbon or Stainless Steel or Glass fibre |
| Style | Fixed |
| SWL (kg) | 100 |
| NBL (kg) | 200 |
| A (mm) | 18 |
| B (mm) | 40 |
| C (mm) | 4 |
| D (mm) | M6 |
| Weight (g) | 8.2 |
