Facnor FX+1500 Click Ratchet Furler – Bottom Up Furler Set (Drum & Swivel)
Compact and Efficient Bottom-Up Furling with Integrated Ratchet System
The Facnor FX+1500 Click Ratchet Furler is a high-performance bottom-up furling system designed for easy and efficient handling of gennakers and code sails. Featuring an innovative integrated ratchet system, this furler provides improved control during sail deployment, reducing unwanted unfurling and ensuring smoother, safer operation. Compact, lightweight, and engineered for durability, the FX+1500 Click Furler is ideal for sailors seeking a reliable, user-friendly furling system for small to mid-sized yachts.
Key Features:

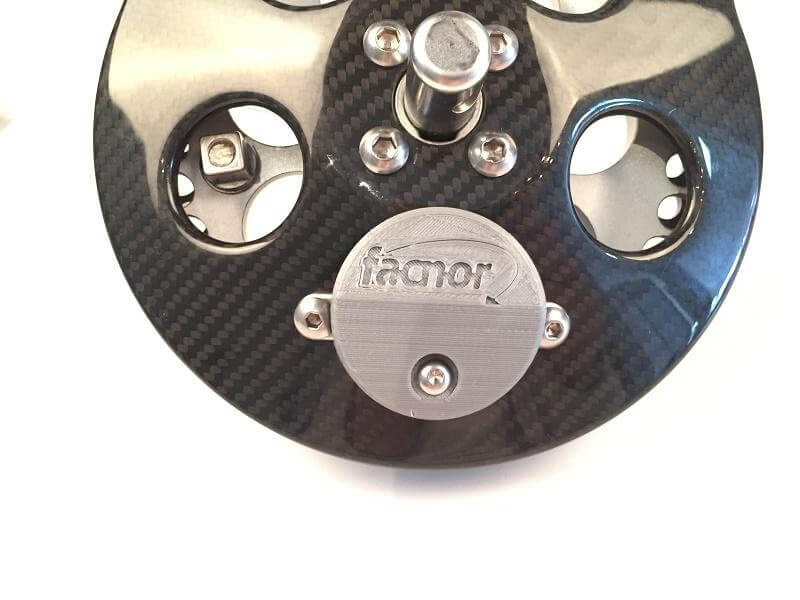

- Integrated Click Ratchet System: Prevents accidental unfurling by providing controlled furling tension, increasing safety and ease of handling.
- Bottom-Up Furling Efficiency: Designed for gennakers and code sails, ensuring fast and reliable furling and unfurling.
- High-Performance Bearings: Sealed, maintenance-free bearings ensure smooth operation and longevity in harsh marine environments.
- Lightweight and Durable Construction: Made from marine-grade anodized aluminum and stainless steel for optimal strength-to-weight ratio and corrosion resistance.
- Quick and Secure Attachment: Features a user-friendly, tool-free Click system for fast installation and removal.
- Versatile Sail Handling: Perfect for sailors looking to enhance their downwind and reaching sail performance with a lightweight and efficient furler.

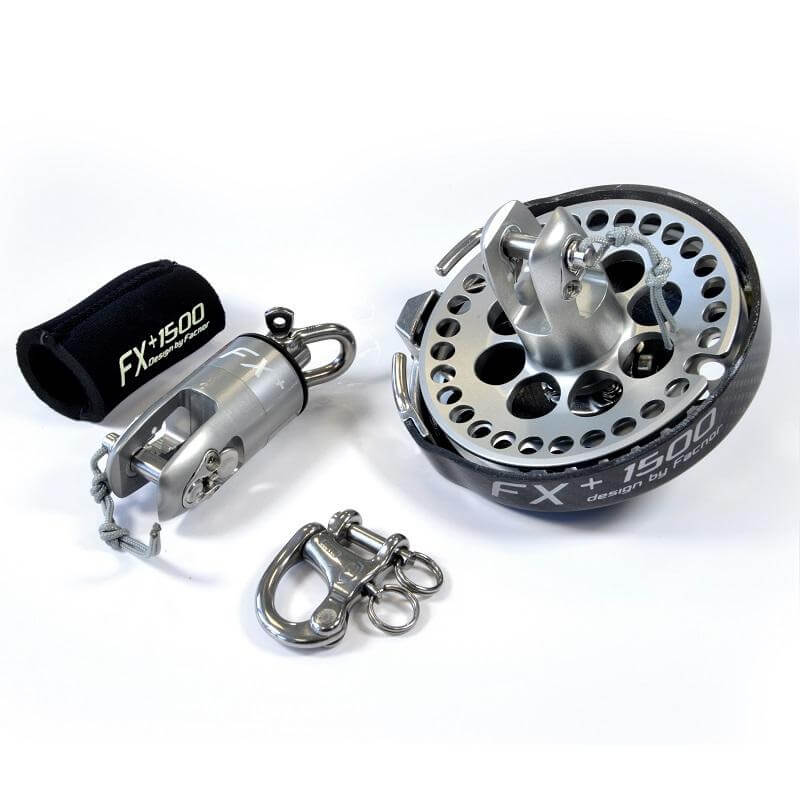

What’s Included in the FX+1500 Click Furler Set?

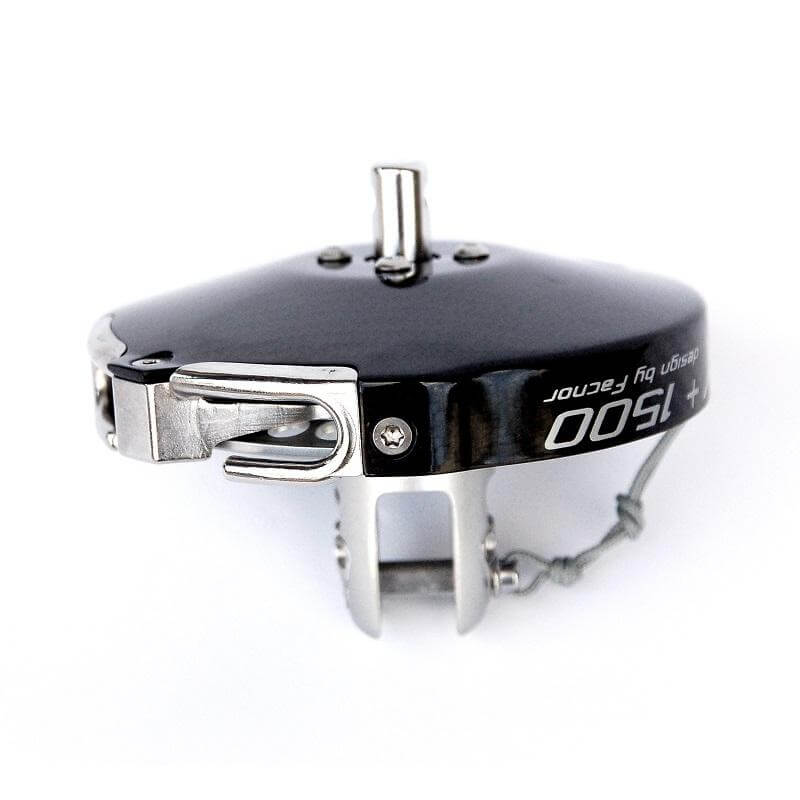

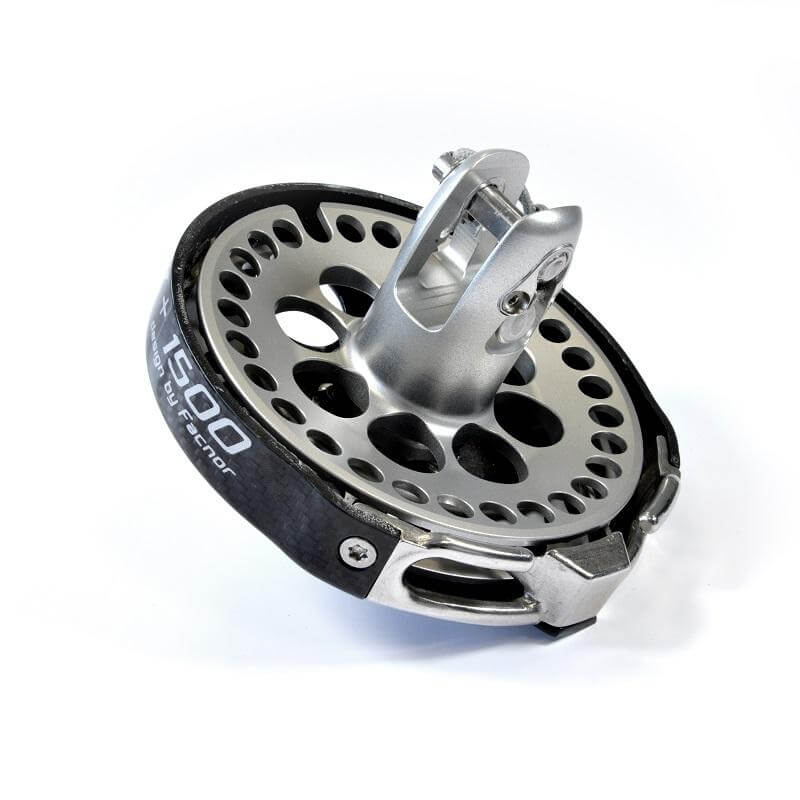

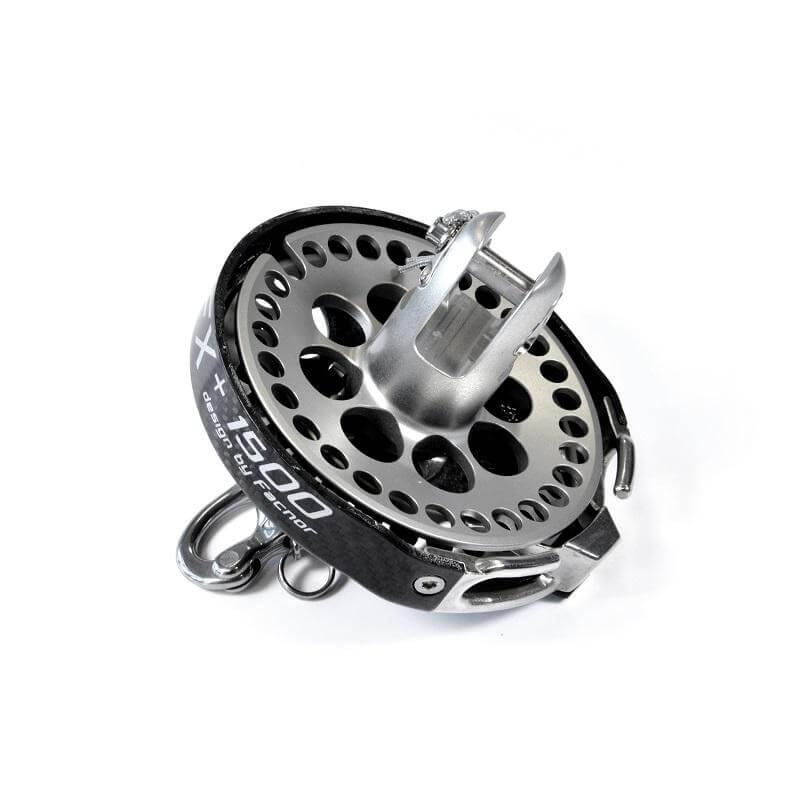

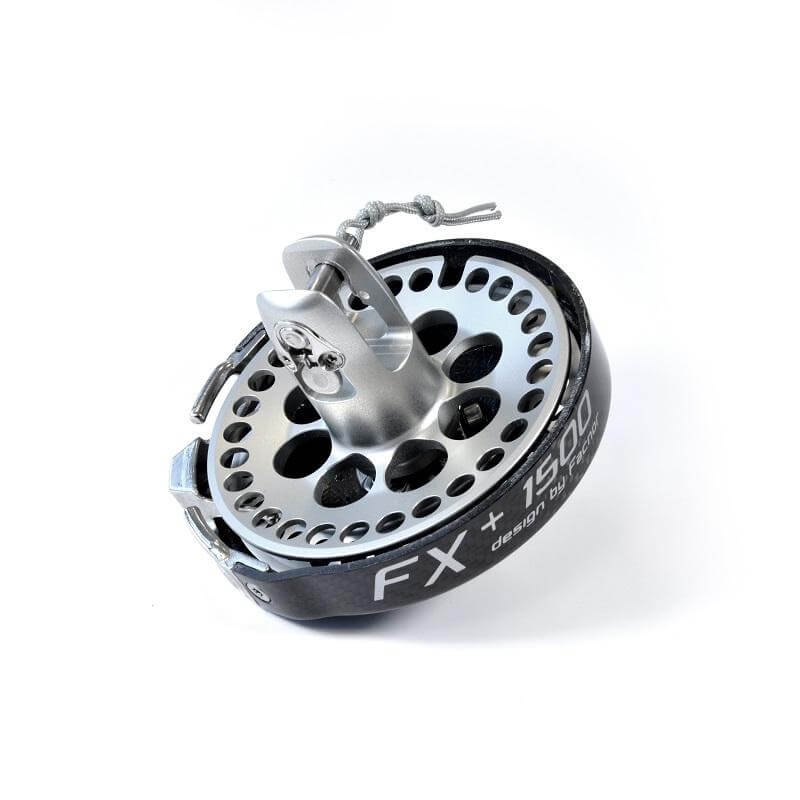

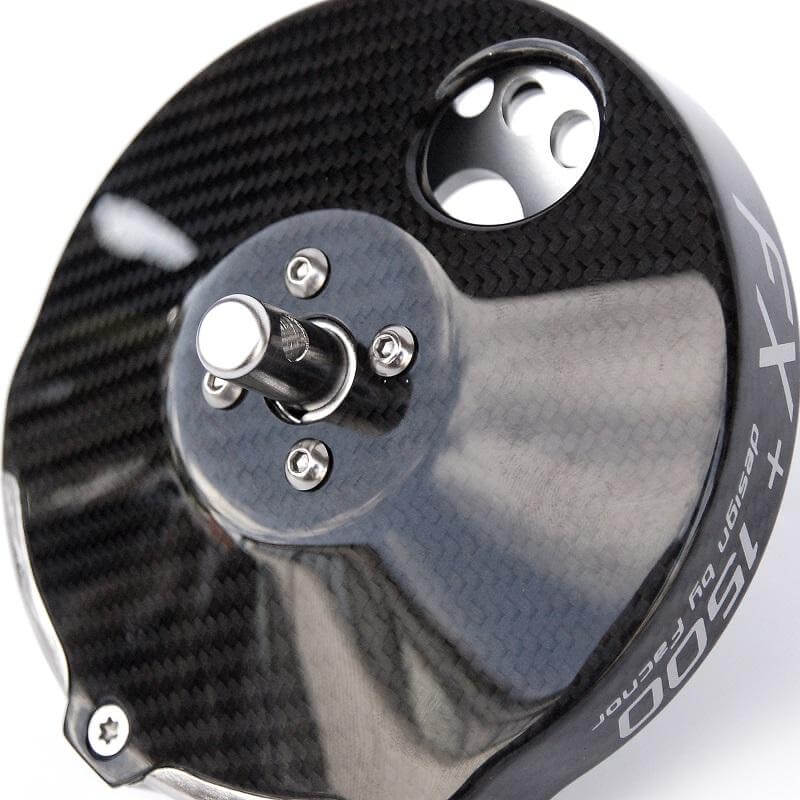

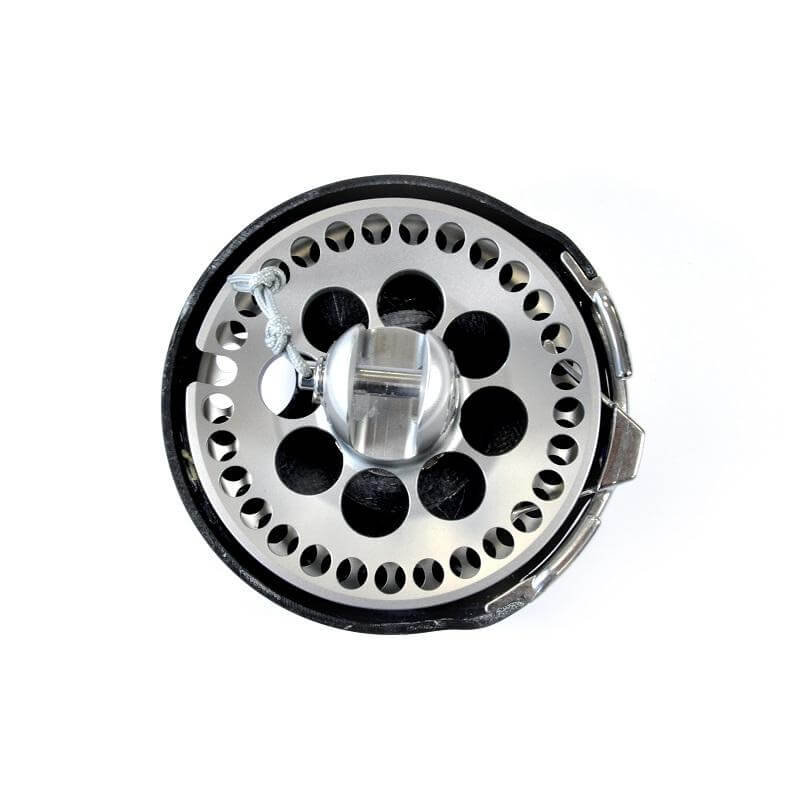

- FX+1500 Bottom-Up Drum – Equipped with the Click Ratchet System for controlled furling and reduced accidental sail deployment.
- Top Swivel – High-performance bearing system for smooth sail rotation and furling.
- Top Swivel Protection & Shackle – Provides added security and protection for the top swivel, ensuring long-lasting performance.

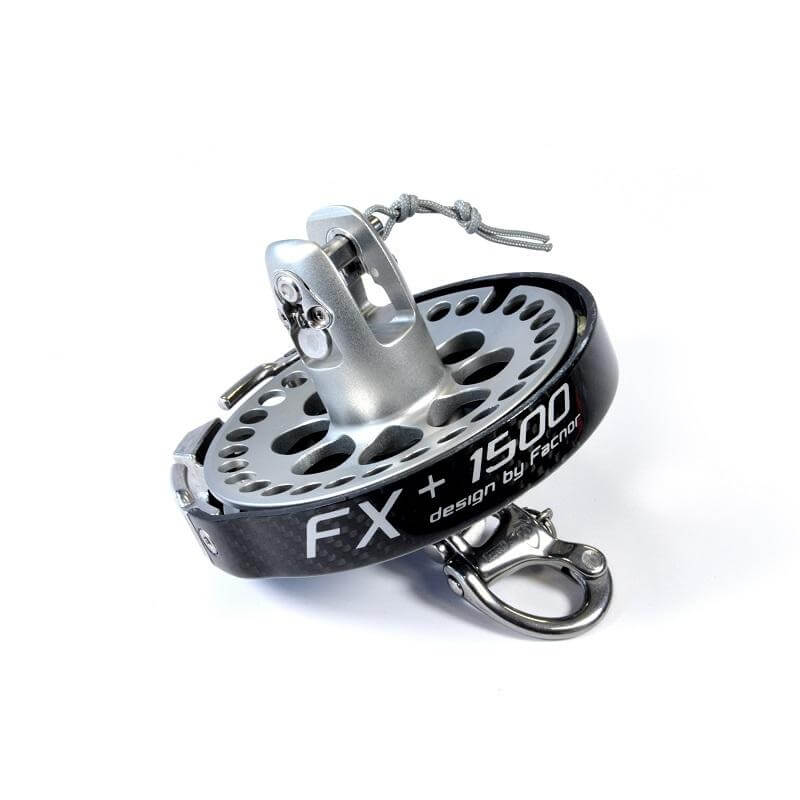

- Snap Shackle for Drum – Allows quick and secure attachment of the drum to the deck or bowsprit, offering added convenience.
Technical Specifications:
- Safe Working Load (SWL): 1.5T (1500 kg)
- Furling Type: Bottom-up for gennakers and code sails
- Construction: Anodized aluminum and stainless steel for strength and corrosion resistance
- Installation: Tool-free Click system for quick and secure attachment
Why Choose the Facnor FX+1500 Click Ratchet Furler?
The Facnor FX+1500 Click Ratchet Furler is an ideal choice for sailors looking to enhance their sail-handling efficiency and safety. The built-in ratchet function significantly reduces the risk of accidental unfurling, providing controlled and secure furling, even in challenging wind conditions. Designed for convenience, reliability, and durability, this furling set is a must-have for any performance-focused sailor.
Upgrade Your Sailing Experience
Improve your downwind and reaching sail management with the Facnor FX+1500 Click Ratchet Furler. With its advanced ratchet mechanism, high-quality construction, and easy installation, this furling system offers a seamless and efficient solution for controlling your gennakers and code sails.
Specifications
| Recommended line - Max Ø (mm) | 8 |
| Jaw pin Ø (mm) | 8 |
| Jaw width (mm) | 15 |
| Drum Ø (mm) | 121.5 |
| SWL (kg) | 1500 |
| NBL (kg) | 3000 |
| Weight (g) | 564 |
