Specifications for UBI Maior Cross Over CO60
| Cordage recommandé – Ø Max (mm) | 18 |
| Ø réas (mm) | 60 |
| Material Grade | 6082-T6 |
| Mounting fasteners | 3 x M6 |
| Hauteur (mm) | 36 |
| Sheave material | Delrin® |
| Charge de travail (kg) | 2200 |
| Charge de rupture (kg) | 4400 |

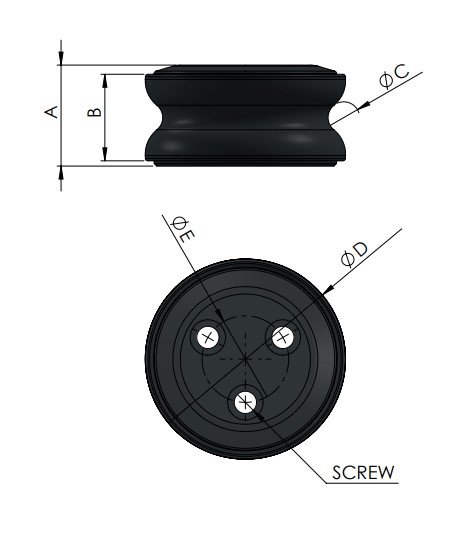

| A (mm) | 36 |
| B (mm) | 24 |
| C (mm) | 12 |
| D (mm) | 60 |
| E (mm) | 22 |
| Poids (g) | 340 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Cross Over blocks (CO) are perfect for installation behind the stopper to deflect the line onto the opposite winch without creating a corner, leaving the stopper or using the base of the winch as a cross over. Made from ALUMINUM alloy 6082T6 with a DELRIN sheave and bearings, these blocks come with a clamping plate.
Supplied with screws for a maximum deck thickness of 20mm.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Cordage recommandé – Ø Max (mm) | 18 |
| Ø réas (mm) | 60 |
| Material Grade | 6082-T6 |
| Mounting fasteners | 3 x M6 |
| Hauteur (mm) | 36 |
| Sheave material | Delrin® |
| Charge de travail (kg) | 2200 |
| Charge de rupture (kg) | 4400 |
| A (mm) | 36 |
| B (mm) | 24 |
| C (mm) | 12 |
| D (mm) | 60 |
| E (mm) | 22 |
| Poids (g) | 340 |
